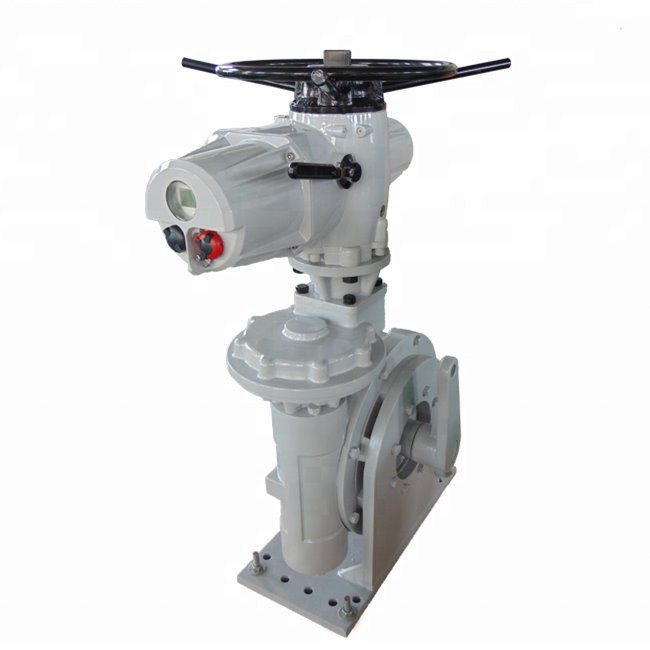

PT series actuators consist of worm gearbox reducer, making the continuous operation of multiple turns into angle of rotation.
| Quantity: | |
|---|---|
Product introduction
PT series actuators consist of worm gearbox reducer, making the continuous operation of multiple turns into angle of rotation.
Brand | QOTO |
MODEL | PT actuator |
Rated stroke time error | 20% |
Clearance | ≤3° |
Repeatability error(Setting stroke time≥25S) | ≤1% |
Torque output | Direct drive, 10 Nm to 3,600 Nm; combined with a gearboxes, up to 15,000 Nm |
Generally suitable for large torque rotary valves, such as butterfly valves, ball valves, plug valves and dampers, it can couple with base, transmission shaft, crank for rotary valves. The output angle is 0 ~ 90°. The maximum output torque is 450000N.M.
1.Does the actuator have an absolute encoder or a relative encoder?
Our actuator uses an absolute encoder, even if it is out of power, it has its own memory function, and the data will not be lost.
2.Does the actuator have torque protection function?
Yes. The torque protection value can be set by the remote control
