Product Description

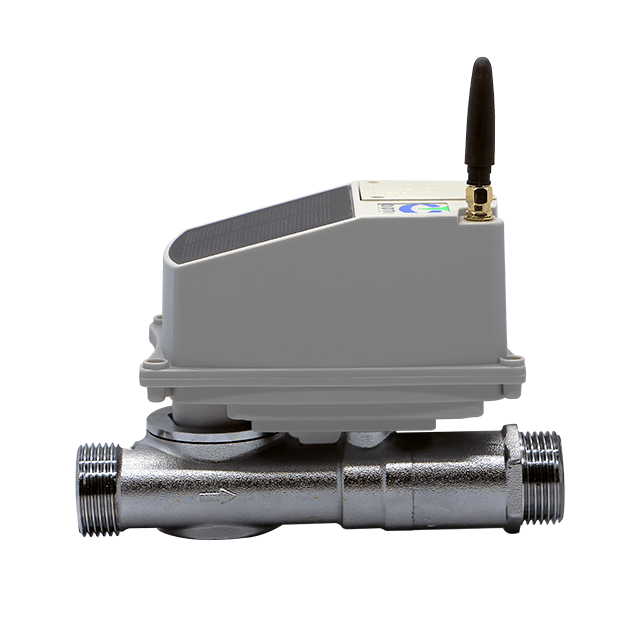

The GSM based wireless smart water valve controller can be applied in drip irrigation and sprinkler irrigation. it can be used in residential irrigation (home lawn watering, potted plants, etc.), commercial irrigation (school landscape, sports field, road greening) and agricultural irrigation.
An android phone-control irrigation system allows users to manage irrigation task through cell phone. The application needs cellular network or mobile network and instructions request are sent to user by SMS.
Multiple irrigation modes to satisfy plants growing: Single control, cycle control, timed program and polling irrigation. The valves have smart interaction with pumps and sensors, which can adjust water pressure according to the environment elements and regulate pipe pressure at will.
Product Characteristics
1. Motorized ball valve
2. Partial aperture(programmable from 0~100% )
3. Flow meter pulse counting
4. Water pressure: 0~185 PSI
5. Available from DN10 to DN25
6. Cellular network connectivity(GSM, GPRS, CDMA, 2G / GSM, 3G, 4G / LTE, EDGE)
7. Port available for USB power supply and extra solar panel
8. Control the irrigation task remotely via the internet or via SMS messaging
product model | QT-01F-G | |
battery | 18650 lithium battery(wide temperature)， battery capacity: 2000mAh，two pcs | |
solar panel | Monocrystalline silicon 5V 0.6W | |
botton connector port | solar power charging port：9V-30V | |
USB charging port：DC9V 1A | ||
flow meter | built-in flow meter | |
max speed：10m/s | ||
min speed：0.3m/s | ||
working pressure：5kg/cm^2 | ||
ball valve torque | >10KGfCM | |
Max power | communication：3.8W | |
block：4.6W | ||
low power mode | sleep current：<10uA | |
non low power mode | stand-by current：NB<48mA,4G<65mA,lora<26mA | |
wireless communication specification | 4G | LTE Cat-1 |
LTE-FDD: B1/B3/B5/B8 | ||
LTE-TDD: B34/38/39/40/41 | ||
HTTP MQTT TCP/IP | ||
NB | Cat-NB B3/B5/B8 | |
HTTP MQTT TCP/UDP | ||
Product Description
The GSM based wireless smart water valve controller can be applied in drip irrigation and sprinkler irrigation. it can be used in residential irrigation (home lawn watering, potted plants, etc.), commercial irrigation (school landscape, sports field, road greening) and agricultural irrigation.
An android phone-control irrigation system allows users to manage irrigation task through cell phone. The application needs cellular network or mobile network and instructions request are sent to user by SMS.
Multiple irrigation modes to satisfy plants growing: Single control, cycle control, timed program and polling irrigation. The valves have smart interaction with pumps and sensors, which can adjust water pressure according to the environment elements and regulate pipe pressure at will.
Product Characteristics
1. Motorized ball valve
2. Partial aperture(programmable from 0~100% )
3. Flow meter pulse counting
4. Water pressure: 0~185 PSI
5. Available from DN10 to DN25
6. Cellular network connectivity(GSM, GPRS, CDMA, 2G / GSM, 3G, 4G / LTE, EDGE)
7. Port available for USB power supply and extra solar panel
8. Control the irrigation task remotely via the internet or via SMS messaging
product model | QT-01F-G | |
battery | 18650 lithium battery(wide temperature)， battery capacity: 2000mAh，two pcs | |
solar panel | Monocrystalline silicon 5V 0.6W | |
botton connector port | solar power charging port：9V-30V | |
USB charging port：DC9V 1A | ||
flow meter | built-in flow meter | |
max speed：10m/s | ||
min speed：0.3m/s | ||
working pressure：5kg/cm^2 | ||
ball valve torque | >10KGfCM | |
Max power | communication：3.8W | |
block：4.6W | ||
low power mode | sleep current：<10uA | |
non low power mode | stand-by current：NB<48mA,4G<65mA,lora<26mA | |
wireless communication specification | 4G | LTE Cat-1 |
LTE-FDD: B1/B3/B5/B8 | ||
LTE-TDD: B34/38/39/40/41 | ||
HTTP MQTT TCP/IP | ||
NB | Cat-NB B3/B5/B8 | |
HTTP MQTT TCP/UDP | ||
