↘ Product Overview

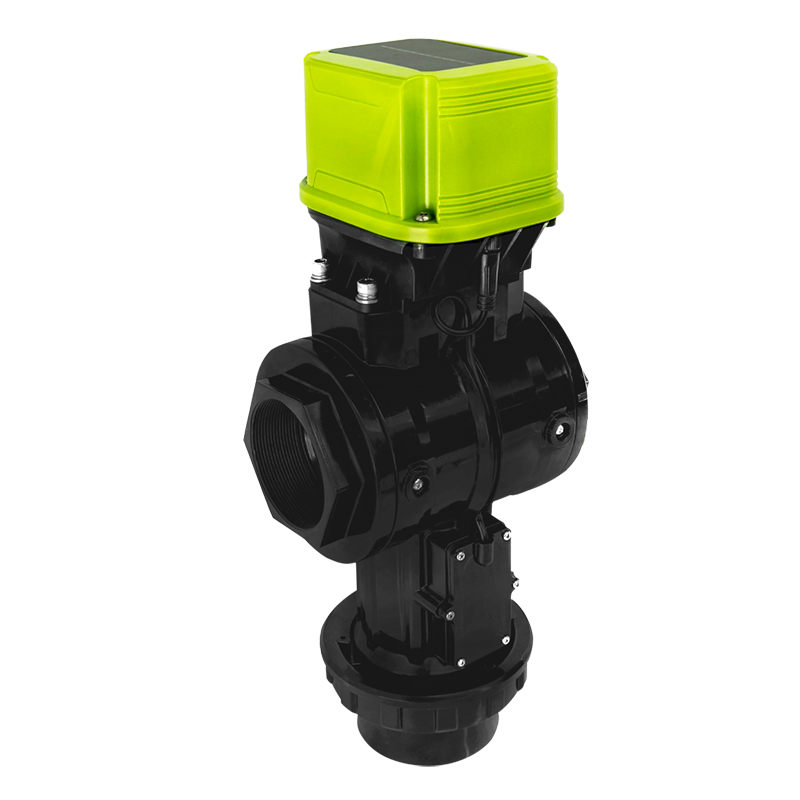

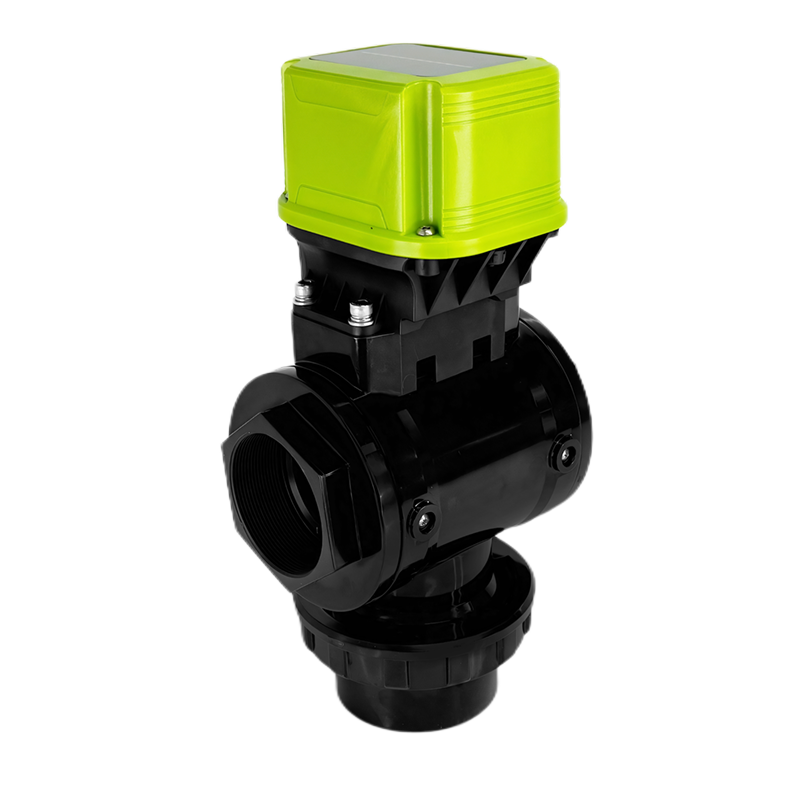

Smart three-way valve adopts solar panel + battery power supply, 4G, QOTA, RS485 and other communication protocols can be selected to realize the cell phone APP, computer web,console and other ways of remote control, or set up a local wireless LAN control, multifunctional, easy to operate, stable operation. Widely used in agricultural intelligent irrigation, pipeline control, etc., easy to manage ten thousand acres of farmland.

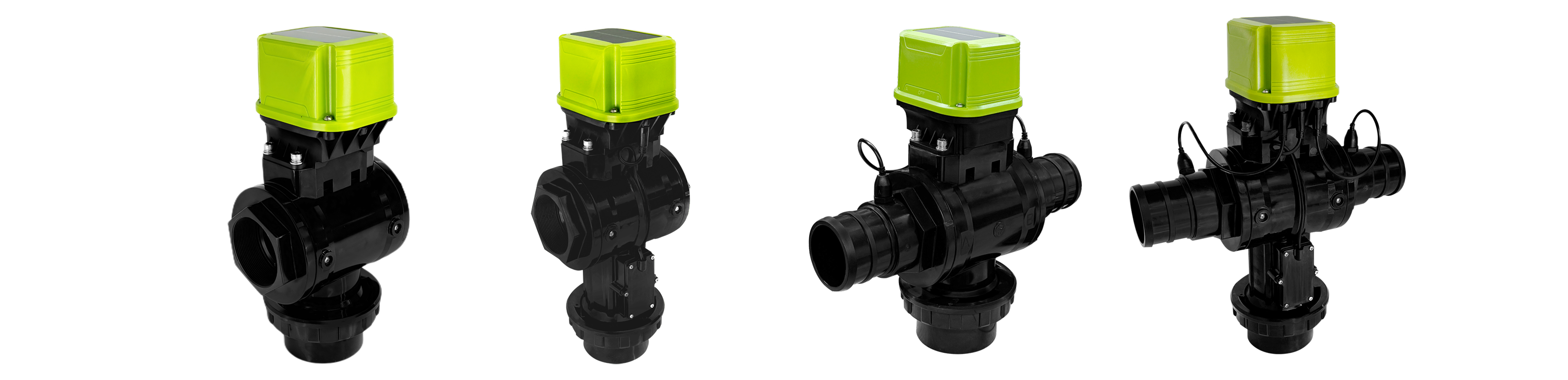

The valves have L-type and T-type control, L-type for unilateral control, i.e., control A open or B open; T-type for the control of A, B both open and close at the same time, the valve caliber DN65/DN80/DN100 can be selected, but also according to the needs of the optional highprecision flowmeter or pressure sensors, to cope with different installation and use of the environment.
↘ Product Specs

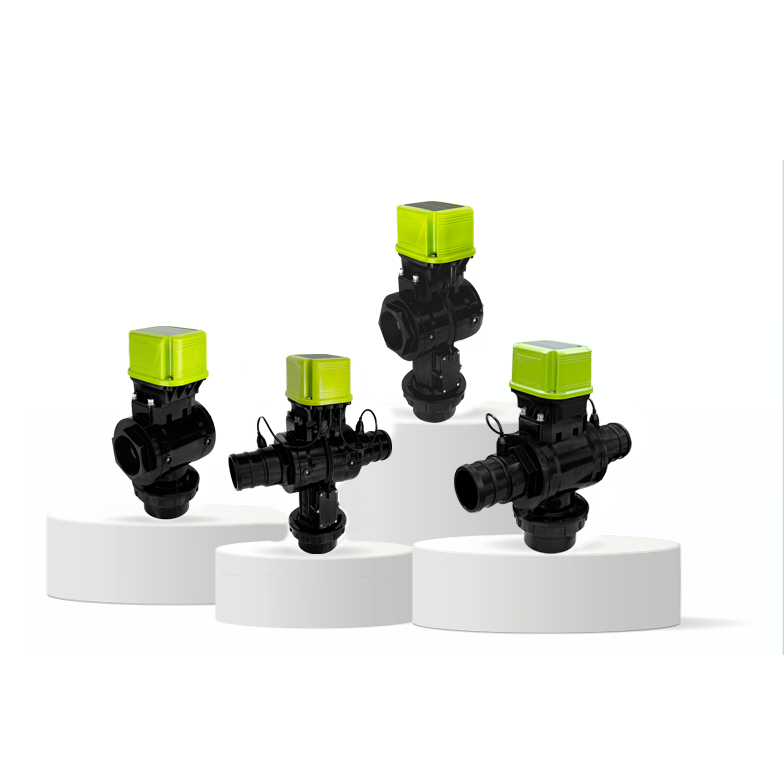

For Model QT-12DT / QT-12TF
| Valve Control | Power Supply | Communication | IP Code |
| L Type/T Type | Solar+Milirary Grade Battery | LoRaWAN/QOTA/4G | IP67 |
| Port Size | Flow Meter/Pressure Meter | Ambient Temperature | Fluid Temperature |
| De90/De110 | Optional | -40℃~80℃ | 0℃~70℃ |
Remote Control
Suppoprt mobile phone, PC or Tablet remote control. Anytime, anywhere.
Water Flow Control

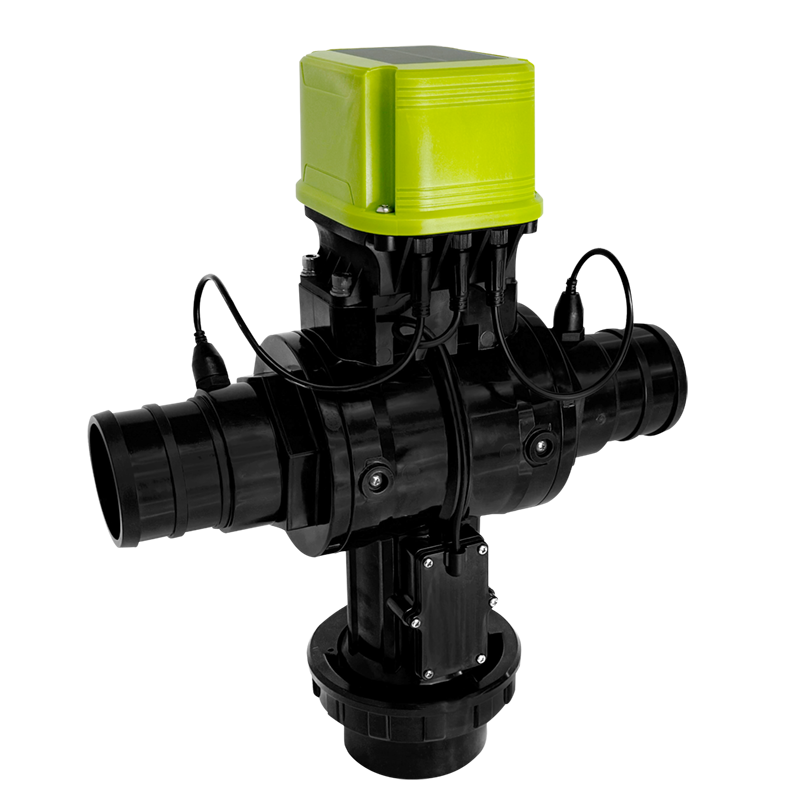

L-Type: A-Open, or B-Open, or Both-Close;

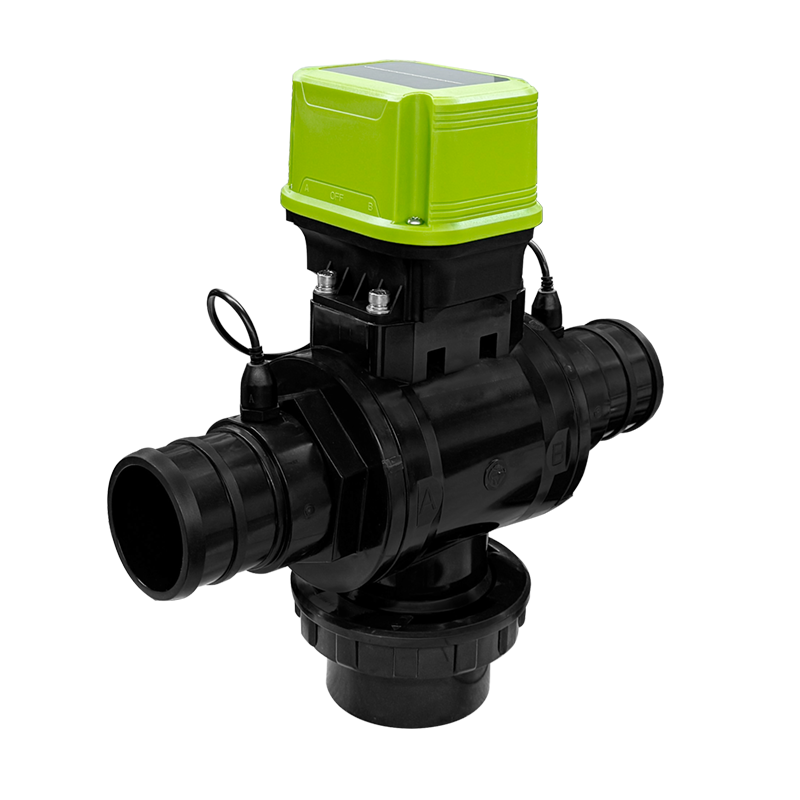

T-Type: A&B-Open, or A&B-Close;
The valve could be opened/closed by percentage, e.g. opening 50%
Basic Functions
Single-run control,duration control, capacity control (with flow meter), cyclic control, timed control, pressure control (with manometer)..
Optional Functions
Flow meter: High-precision; One-key constant flow control; Water shortage alarm...
Power Supply
Powered by solar panel + military grade battery. Battery life up to 25 days and lifespan up to 10 years;
Charging display: When the device is charging, it can display high speed charging or low speed charging status on PC or APP.
Sleep mode: Sleep mode can be set to save power when the device is not in use for a long time.
Other Pratical Functions
Error/low battery alarm;Real-time status upload; Subsequential task mode; Emergent manual operation; Log storage; Signal strength indicator; No "water hammer";
▂▂▂▂
