QT-02 Series

Availability:

Quantity:



Inquire

Personalized

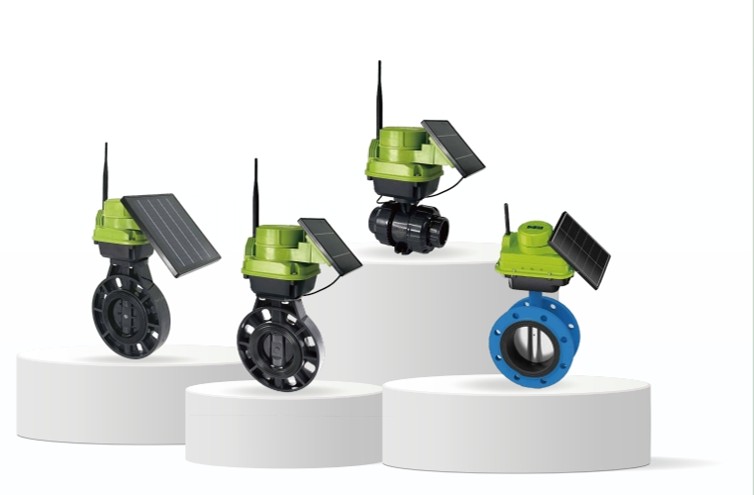

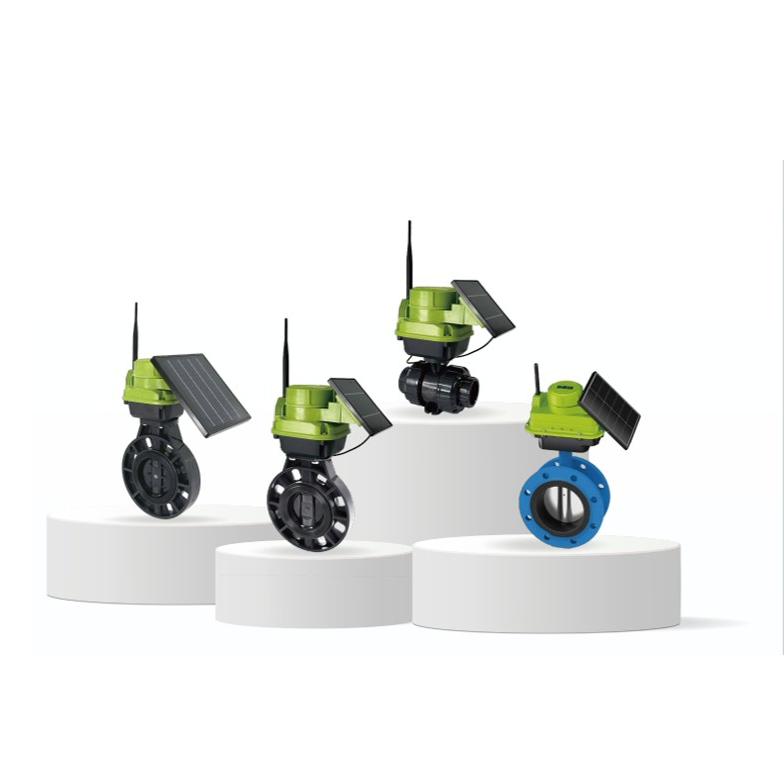

QT-02F Series IoT Based Smart Valves

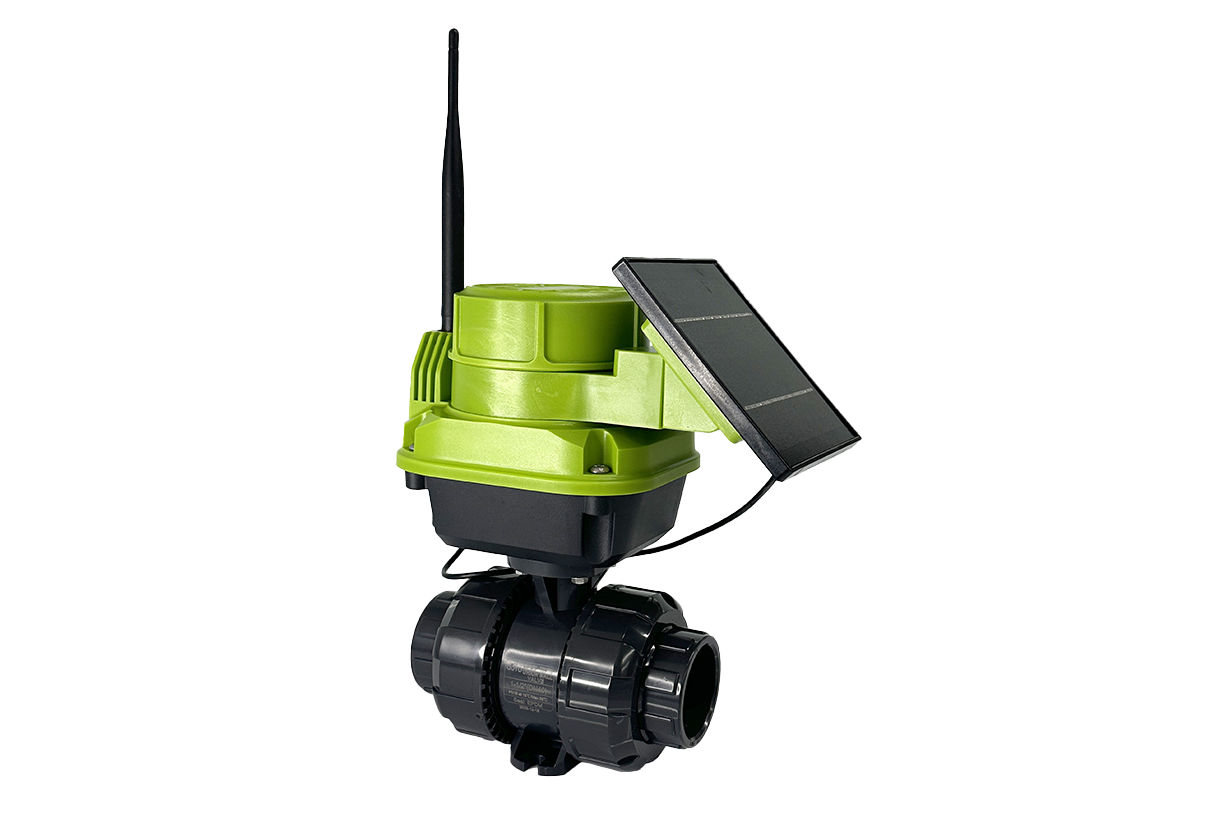

QT-02F series is powered by a dismountable solar panel and a battery, available in 4 models with varying torques. It can be configured with ball valves or butterfly valves(with optional valve materials), and supports valve sizes from DN32 to DN300. High-precision flow meters or pressure sensors are optional for different installation and usage environments.

4G, QOTA, LoraWAN, RS485 can be selected to achieve cell phone APP, computer web, Tablet and other ways of remote control, or set up a local wireless LAN control, multi-functional, easy to operate, stable operation. Widely used in gardening, agricultural intelligent irrigation, pipeline control, water conservancy.

FEATURES

1 -

Remote Control

Suppoprt mobile phone, PC or Tablet remote control. Anytime, anywhere.
Power Supply

Powered by solar panel + military grade battery. Battery life up to 25 days and lifespan up to 10 years.
Rotatable Solar Panel

The solar panel could be adjusted horizontally for a range of 200° for better sunshine reception.

FUNCTIONS

1 -

Basic Functions

Single-run control,duration control, capacity control (with flow meter), cyclic control, timed control, pressure control (with manometer).. Valve opened by percentage.
Optional Equipment

Flow meter: High-precision; One-key constant flow control; Water shortage alarm...
Pressure meter: One-key constant pressure, H/L pressure alarm..
Other Functions

Error/low battery alarm;Real-time status upload; Subsequential task mode; emergent manual operation; log storage; Signal strength indicator; No "water hammer"; IP 67..

POPULAR MODELS

Model: QT-02F05

Power Supply: Solar+ Military-grade Battery
Torque: 50N.m
Maximum valve diameter: DN50
Ambient temperature:-40~80℃
Communication: 4G/QOTA/LoRaWAN
Protection grade: IP67
Configuration: Flow meter or pressure sensor (optional)
Fluid temperature: 0~70℃

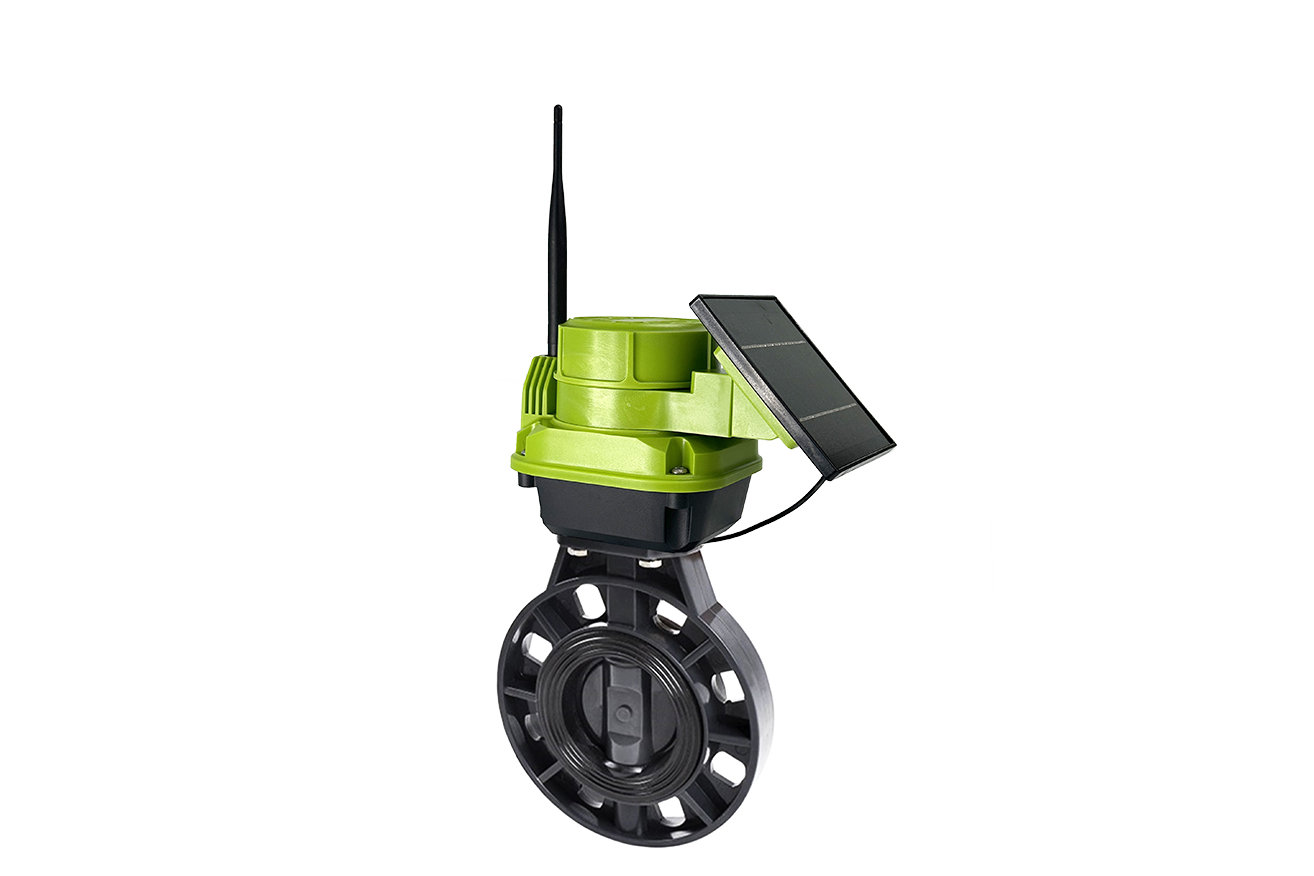

Model: QT-02F08

Power Supply: Solar+ Military-grade Battery
Torque: 80N.m
Maximum valve diameter: DN100
Ambient temperature:-40~80℃
Communication: 4G/QOTA/LoRaWAN
Protection grade: IP67
Configuration: Flow meter or pressure sensor (optional)
Fluid temperature: 0~70℃

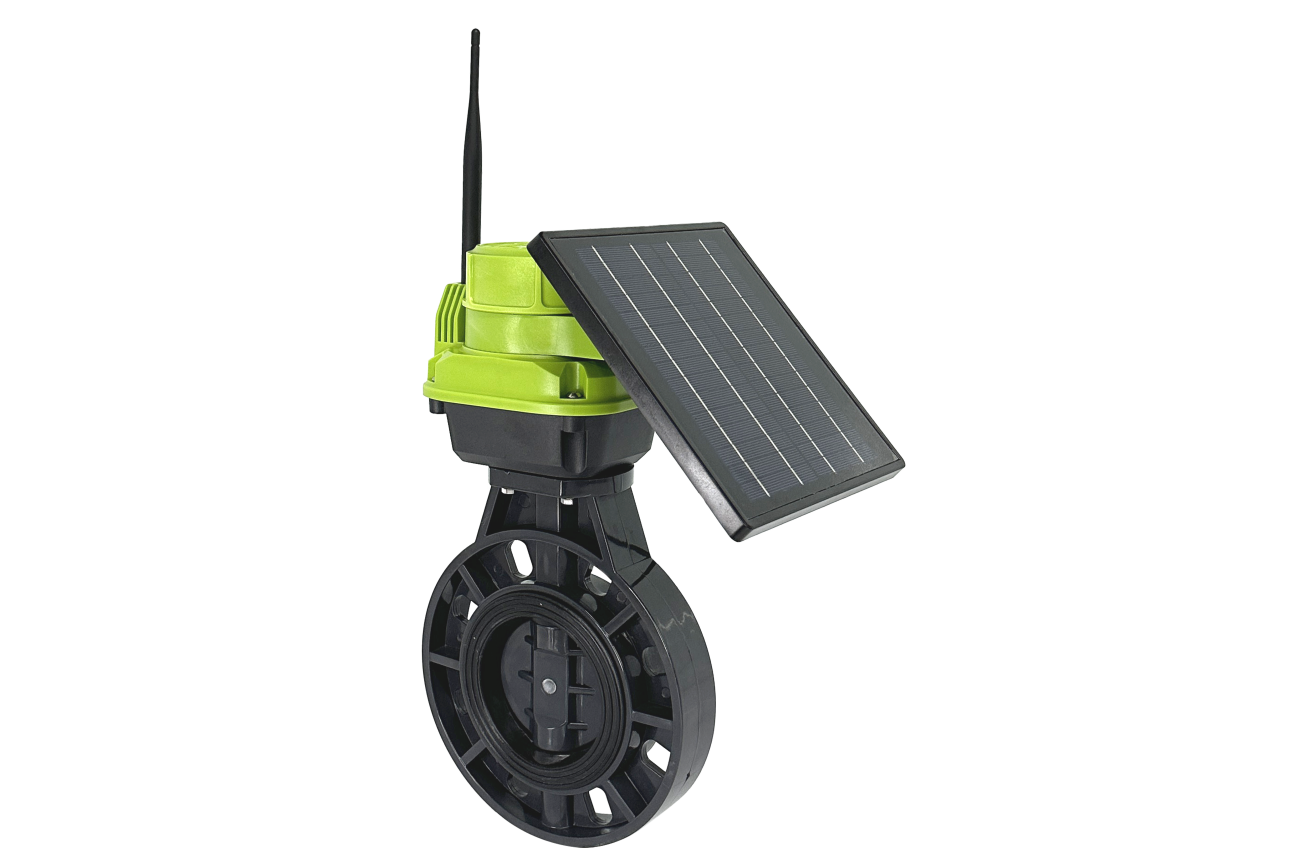

Model: QT-02F12

Power Supply: Solar+ Military-grade Battery
Torque: 120N.m
Maximum valve diameter: DN150
Ambient temperature:-40~80℃
Communication: 4G/QOTA/LoRaWAN
Protection grade: IP67
Configuration: Flow meter or pressure sensor (optional)
Fluid temperature: 0~70℃

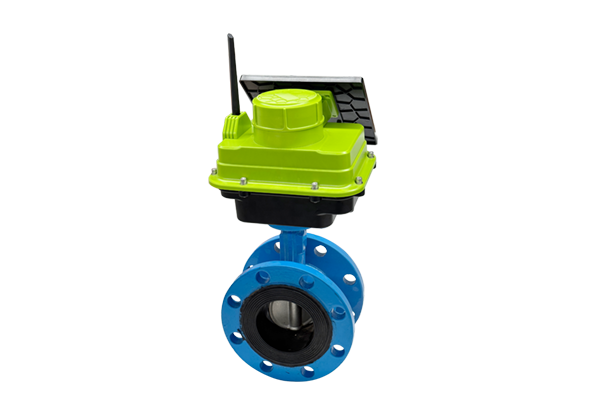

Model: QT-02F30

Power Supply: Solar+ Military-grade Battery
Torque: 300N.m
Maximum valve diameter: DN300
Ambient temperature:-40~80℃
Communication: 4G/QOTA/LoRaWAN
Protection grade: IP67
Configuration: Flow meter or pressure sensor (optional)
Fluid temperature: 0~70℃
