What is QOTA
QOTA is a wireless communication protocol developed by Qoto Smart, which is also optimized in depth for the IoT scenarios. QOTA uses the same frequency bands to LoRa system, but it owns some advantages over LoRa and resolves many pain points in wireless communication.
Why QOTA
Advantages Over LoRa and 4G
QOTA VS 4G
QOTA solves the problem of 4G in unstable signal in remote areas;
QOTA has not the potential issue of insufficient bandwidth of 4G base stantion in future;
QOTA VS LoRa
QOTA does not need provision gateway and sub-device like LoRa;
QOTA does not need the troublesome reconnection if gateway gets off-line;
QOTA has better interference suppression;
Technical Spes of QOTA
1. Power supply mode: DC5-30V / 3.7V lithium battery and solar panel.
2. Communication mode: QOTA to 4G
3. Protocol type: TCP, MQTT
4. Interface: 1*RS232, 1*RJ45 network cable, external power interface
5. QOTA working frequency: 470mhz-510mhz or others
6. QOTA Max. transmit power: ≥29dbm
7. QOTA data rate: ≥410bps
8. Receiving sensitivity: ≥-126dBm
9. Wireless coverage: ≥1KM
10. Ambient temperature: -30°C~+70°C
11. Protection level: IP67
12. Material: PC+glass fiber
13. Installation method: pole indoor/outdoor
14. Battery capacity: 100000mA
15. Installation height: ≥3m
16. Sleep mode current: <50uA
17. Transmitting current: <500mA
18. Solar panel parameters: monocrystalline silicon 30V 30W (510mm*430mm)
19. Upgrade method: OTA remote upgrade
20. SIM card: SIM card information management function. (May vary with different telecom operators)
21. QOTA communication mode: FRP antenna is adopted, which can actively issue commands and receive QOTA data at the same time
22. Power detection function, the battery power is too low to enter sleep mode, and the power returns to normal and enters the normal
working mode again

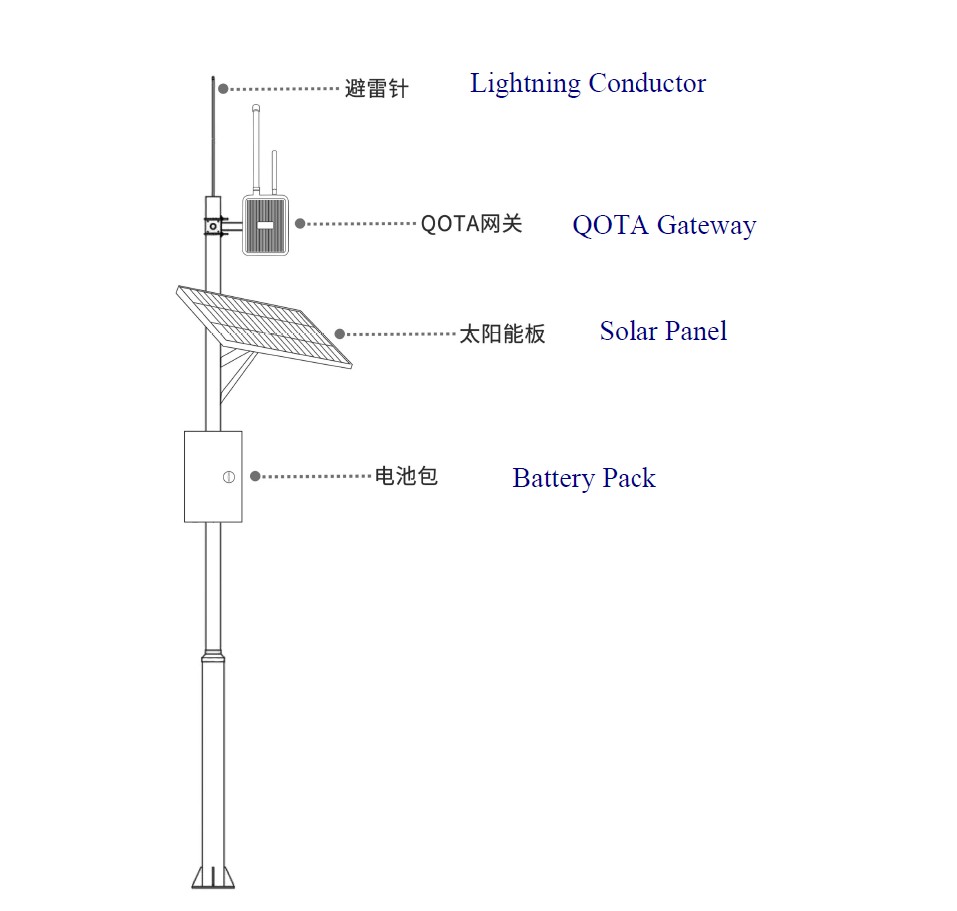

QOTA Gateway
