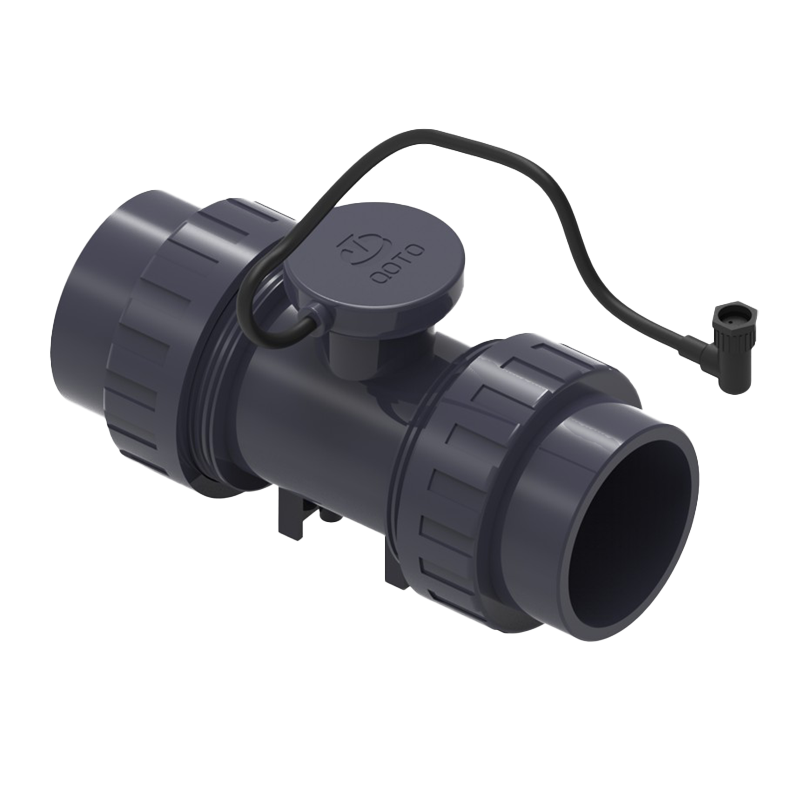

↘ Product Overview

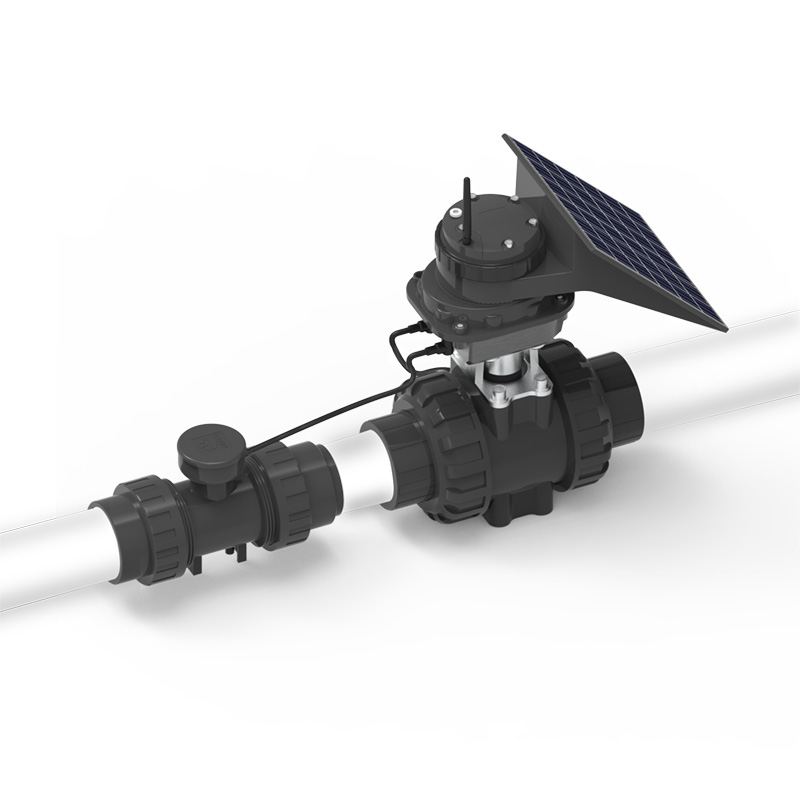

Working with QOTO smart valve, the external flow meter calculates the water flow via revolving worm gear.

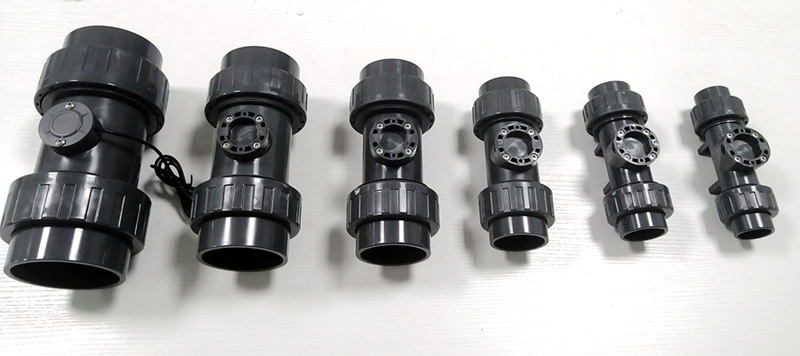

Available size: DN25-DN80

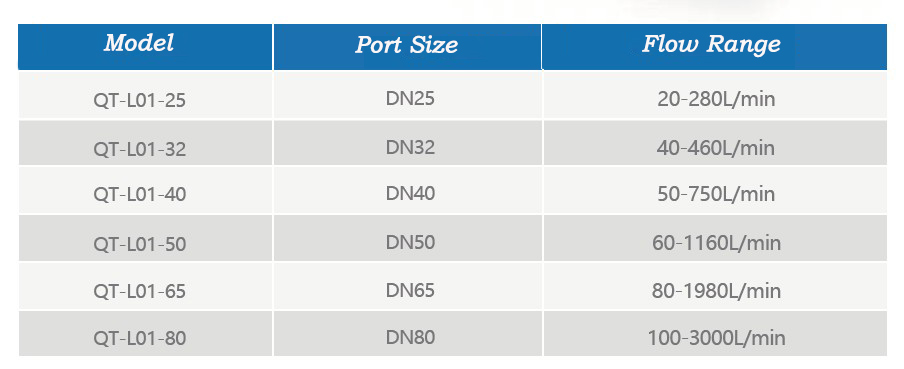

↘ Product Specs
| Port Size-DN (mm) | Flow Rate (m/s) | |||||||||
| 0.01 | 0.1 | 0.3 | 0.5 | 1 | 2 | 3 | 4 | 5 | 10 | |
| Flow Through (m/h) | ||||||||||
| 25 | 0.01767 | 0.17672 | 0.53014 | 0.88357 | 1.76715 | 3.53429 | 5.30144 | 7.06858 | 8.83573 | 17.6715 |
| 32 | 0.02895 | 0.28953 | 0.86859 | 1.44765 | 2.89529 | 5.79058 | 8.68588 | 11.5812 | 14.4765 | 28.9529 |
| 40 | 0.04524 | 0.45239 | 1.35717 | 2.26195 | 4.52389 | 9.04779 | 13.5717 | 18.0956 | 22.6915 | 45.2389 |
| 50 | 0.7069 | 0.70687 | 2.12058 | 3.53429 | 7.06858 | 14.1372 | 21.2058 | 28.2743 | 35.3429 | 70.6858 |
| 65 | 0.11945 | 1.19459 | 3.58377 | 5.97295 | 11.9459 | 23.8919 | 35.8377 | 47.7836 | 59.7295 | 119.459 |
| 80 | 0.18296 | 1.80956 | 5.42867 | 9.04779 | 18.0956 | 36.1911 | 54.2867 | 72.3823 | 90.4779 | 180.956 |

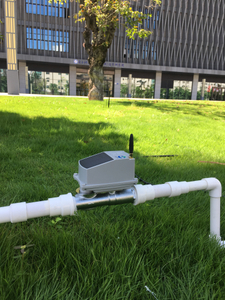

↘ Applicaiton Scenarios
