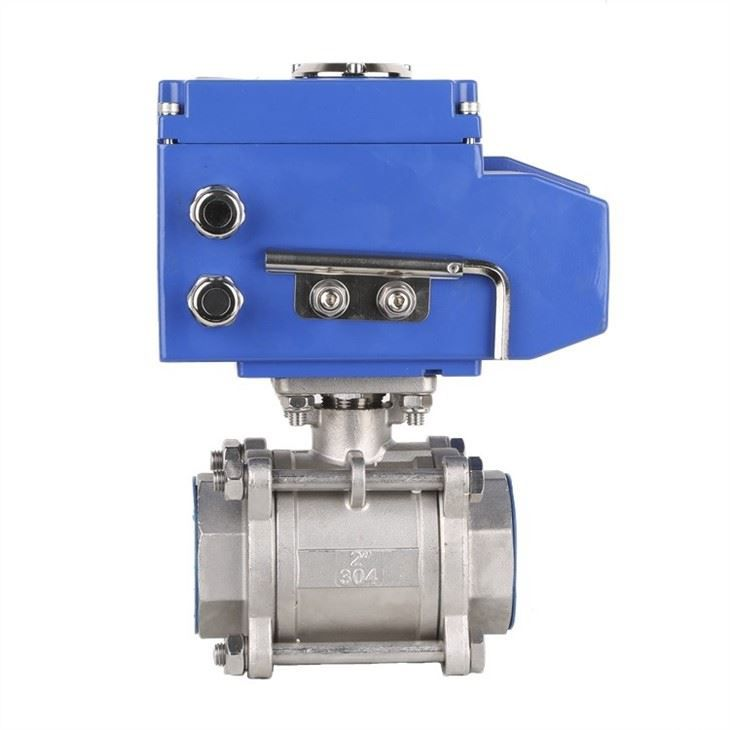

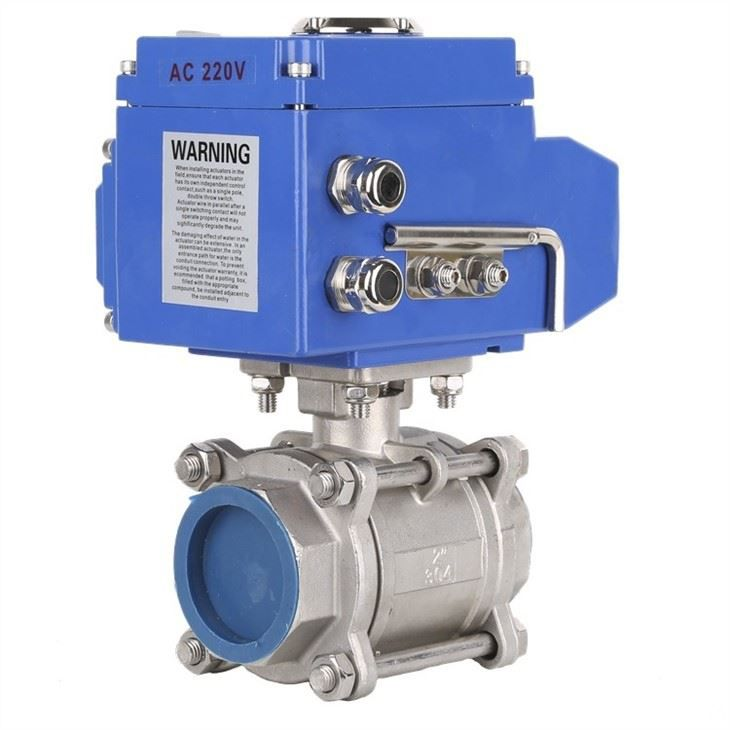

1.Protection grade IP68 2.Perspective structure 3. With more reasonable and reliable gears. 4.Lower motor heat. 5.Easier installation. 6.Faster and easier to adjust. 7. With more stable and reliable modulating actuator
| Quantity: | |
|---|---|
Input Voltage | |||||
DC24V | AC24V | AC110V | AC220V | AC380V | |
Motor Power | 30W | ||||
Rated Current | 2.4A | 3A | 0.64A | 0.28A | 0.19A |
Output Torque | 100NM | 50NM/60NM/100NM | |||
Operating Time | 10S | 5S/30S/40S | |||
Output Shaft | Square hole：14*14/17*17，Depth：18/32； | ||||
Control Circuit | B-type/S-type/R-type/H-type/A-type/K-type/D-type/T-type/ | ||||
Operation Angle | 0~270° | ||||
Weight | 4.7kg | ||||
Dielectric Strength | 500VAC/Minute | 1500VAC/Minute | |||
Insulation Resistance | 100MΩ/300VDC | 100MΩ/500VDC | |||
Working Temperature | -25°C~60°C | ||||
Installation Angle | 360° Any Angle | ||||
Housing | Aluminium Alloy Die-castings，IP67 water-proof grade，NEMA4and6 | ||||
Optional Function | Over torque Protection、Heat Dehumidifier | ||||
Ball Valve | 15-65 | ||||
Butterfly Valve | 50-100 | ||||
Design Standard: ASMEB16.34 GB/T12237
Threaded Ends:PT, BSPT, BSP, NPT, DIN2999,DIN259, DIN EN ISO228
Product Style: Q11F-1000WOG(P/R)
Working Pressure: 1000PSI
Temperature Range: -20°C~180°C
Material: ASTM-A351-CF8M、ASTM-A351-CF8、ASTM-A351-CF3M
Test & Inspection: API598 JB/T9092
1. Body:CF8M/CF8
2. Ball:S304/S316
3. Bolt:S201/S304
4. Nut:S201/S304
5. Packing:PTFE/RPTFE
6. Stem:SS304/SS316
7. Gland:S201/S304
8. Cap:CF8M/CF8
9. Seat: PTFE/RPTFE
10. Thrust washer:PTFE/RPTFE
Input Voltage | |||||
DC24V | AC24V | AC110V | AC220V | AC380V | |
Motor Power | 30W | ||||
Rated Current | 2.4A | 3A | 0.64A | 0.28A | 0.19A |
Output Torque | 100NM | 50NM/60NM/100NM | |||
Operating Time | 10S | 5S/30S/40S | |||
Output Shaft | Square hole：14*14/17*17，Depth：18/32； | ||||
Control Circuit | B-type/S-type/R-type/H-type/A-type/K-type/D-type/T-type/ | ||||
Operation Angle | 0~270° | ||||
Weight | 4.7kg | ||||
Dielectric Strength | 500VAC/Minute | 1500VAC/Minute | |||
Insulation Resistance | 100MΩ/300VDC | 100MΩ/500VDC | |||
Working Temperature | -25°C~60°C | ||||
Installation Angle | 360° Any Angle | ||||
Housing | Aluminium Alloy Die-castings，IP67 water-proof grade，NEMA4and6 | ||||
Optional Function | Over torque Protection、Heat Dehumidifier | ||||
Ball Valve | 15-65 | ||||
Butterfly Valve | 50-100 | ||||
Design Standard: ASMEB16.34 GB/T12237
Threaded Ends:PT, BSPT, BSP, NPT, DIN2999,DIN259, DIN EN ISO228
Product Style: Q11F-1000WOG(P/R)
Working Pressure: 1000PSI
Temperature Range: -20°C~180°C
Material: ASTM-A351-CF8M、ASTM-A351-CF8、ASTM-A351-CF3M
Test & Inspection: API598 JB/T9092
1. Body:CF8M/CF8
2. Ball:S304/S316
3. Bolt:S201/S304
4. Nut:S201/S304
5. Packing:PTFE/RPTFE
6. Stem:SS304/SS316
7. Gland:S201/S304
8. Cap:CF8M/CF8
9. Seat: PTFE/RPTFE
10. Thrust washer:PTFE/RPTFE
