1.Shell:Aluminum alloy shell,waterproof level:IP67,NENA4and6 2.Power supply:110/220VAC 1Phase，380/440VAC 3 Phase,50/60Hz,±10% 3.Control supply:110/220VAC 1Phase， 50/60Hz,±10% 4.Electric machinery:Squirrel-cage asynchronous electric motor
| Quantity: | |
|---|---|

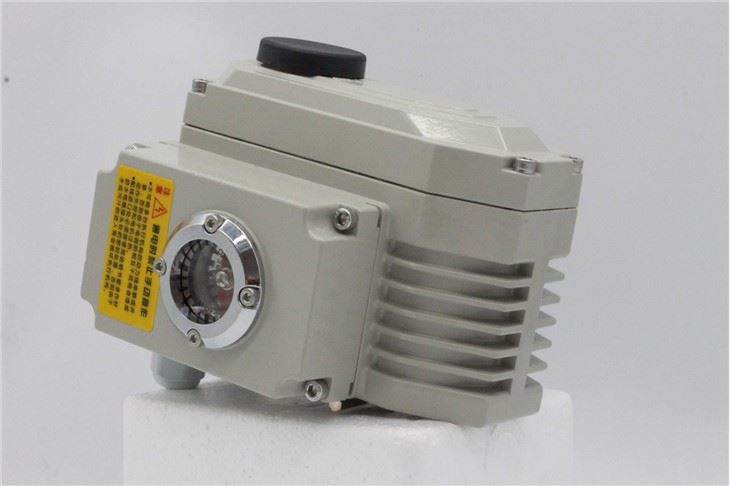

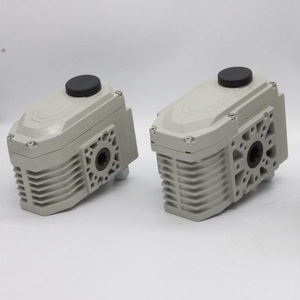

quarter-turn electric valve actuator
electric actuator is used for control 0°-270°rotation of the valves and other similar products.Such as butterfly valve、ball valve、damper、flapper valves、cock etc. It’s widely used in petroleum , chemical, water treatment, shipping, paper making, power plants, heating, light industry and other industries. It drives by 380V/220V/110V AC power,control signal is 4-20mA current signal or 0-10V DC voltage signal , so the valve can be moved to the desired location to achieve automatic control.The maximum output torque is 4000N.M.
Performance Parameters
| Max output | Operating time 90° | Output axis | Electrical | Rated current | Net Weight | |||
N.M | Special | Standard | MM | W | AC | AC | DC | kg | |
003 | 30 | 5/10 | 15 | 11x11 | 20 | 0.10 | 0.05 | 0.2 | 1.4 |
005 | 50 | 5/15 | 30 | 14x14 Φ13-5 | 15 | 0.15 | 0.1 | 2.0 | 3.5 |
010 | 100 | 15/30/60 | 30 | 17x17 Φ16-5 | 30 | 0.28 | 0.19 | 2.5 | 4.7 |
015 | 150 | 15/30/60 | 40 | 17x17 Φ19-5 | 50 | 0.50 | 0.22 | 5.0 | 5.0 |
020 | 200 | 5/15/90 | 40 | 22x22Φ22.5-5 | 70 | 0.60 | 0.25 | 8.5 | 10.0 |
050 | 400 | 5/15/90 | 40 | 22x22Φ28.5-8 | 118 | 1.00 | 0.50 | 8.50 | 10.5 |
100 | 1000 | 5/15/40 | 60 | 27x27 Φ32-8 | 118 | 1.00 | 0.50 | 9.00 | 11.0 |
200 | 2000 | 5/15/40 | 60 | 27x27 | 140 | 1.10 | 0.60 | 10.00 | 11.5 |
Standard Technical Parameters
Shell | Aluminum alloy shell,waterproof level:IP67, NENA4and6 | Model 003 ABS material |
Power supply | 110/220VAC 1Phase，380/440VAC 3 Phase, 50/60Hz,±10% | |
Control supply | 110/220VAC 1Phase， 50/60Hz,±10% | |
Electric machinery | Squirrel-cage asynchronous electric motor | Model 03 for Permanent magnet |
Limit switch | 2x ON/OFF,SPDT,250C AC 10A | |
Accessory Limit switch | 2x ON/OFF,SPDT,250C AC 10A | |
Stroke | 90°~270±10° When it's over 90°please inform in advance | 0°~270° |
Speed protection/ Operating | Inside hot protection , On 120℃±5℃/off 97℃±15℃ | |
Indicator | Continuous situation indication | |
Manual operation | Mechanical handle （Optional：fixing with the hand-wheel ） | |
Self-locking device | Provide self-locking by worm and worm gear | |
Mechanical limit | 2 pieces of adjustable bolts | |
Space heater | Condensation preventing 7-10w(110/220V)AC | |
Bonding hole | 2 pieces M18X1.5 | |
Ambient temperature | -20℃~+70℃ | |
Lubrication | Aluminium base grease(Ep) | |
Material | Steel,aluminium alloy, aluminium bronze, | |
Ambient humidity | Max 90% RH | |
Seismic performance | XYZ10g, 0.2-34Hz,30 minutes | |
External coating | Dry powder, epoxy polyester | Non-condensed |
PTAT-05 appearance and installation dimension (The part of dotted line is used for analog quantity control box. On- off model do not have this size)
PTAT-10 & PTAT-15 appearance and installation dimension (The part of dotted line is used for analog quantity control box. On- off model do not have this size)
PTAT-20 & PTAT-50 appearance and installation dimension
PTAT-100 & PTAT-200 appearance and installation dimension
2、Performance Features
2.1 Shell
The shell is made of aluminium alloy, with anodize oxidation treatment and polyester powder coating. It is strong corrosion-resistant and enclosure IP67,NEMA 4 and 6, IP68 is optional.
2.2 Electric Machinery Motor
Fully enclosed squirrel-cage asynchronous motor, small, large torque, and small inertia force, F-class insulation rating, with thermal protection to avoid damaging.
2.3 Manual Structure Manual Structure
The design of handle is safe,reliable,labor-saving,small.If power failure, operated by handle.
2.4 Indicator
Install indicator in the center shaft and adopts convex mirror design, no cumulate water, more convenient to observe.
2.5 Space Heater Space heater
It is used for controlling temperature to avoid condensing internal of housing and keep dry.
2.6 Sealing Sealing
Well sealing performance and enclosure IP67,IP68 is optional.
2.7 Limit switch
Limit switch-- Mechanical limit stoppers are adjustable, safe and reliable; and not affected by excessive handle.
2.8 Self-locking
Self-locking--Accurate worm and worm gear transfer large torque efficiently, high efficiency, low noise (Max. 50dB), long life, stable and reliable transmission parts, no need to refuel.
2.9 Anti-off bolt
Anti-off bolt--the bolt attached to the shell and be not off when remove the shell.
2.10 Installation
The installation size meets international standard ISO5211/DIN3337. The holes are double square so that it’s easy to fix the linear or 45 corner valves attached square bar adaptable, it can be installed vertically and also can be installed level.
2.11 Circuitry
Controlling circuit meets the single-phase or three-phase power supply standard, circuit layout is reasonable and compact, terminals meet various of additional functional requirements effectively.
