Imagine a world where machines move with precision and power. Actuators make this possible. But which is better: pneumatic or electric? Choosing the right actuator is crucial for efficiency and cost-effectiveness. In this post, you'll learn about pneumatic and electric actuators, their designs, applications, and benefits. We'll help you decide which suits your needs best.

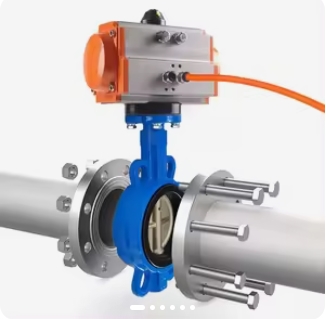

Pneumatic actuators have a simple design. They mainly consist of a hollow cylinder and a piston inside it. When compressed air enters the cylinder, it pushes the piston to create motion. Springs are often included to return the piston to its original position when air pressure is removed. The fewer parts make these actuators compact and easy to install.
Despite their simple core design, pneumatic systems need extra components to work properly. These include air compressors, valves, filters, regulators, and tubing. These add-ons take up space and require maintenance but are essential for controlling air pressure and flow.
Pneumatic actuators convert compressed air energy into mechanical motion. When air pressure fills the cylinder, it pushes the piston forward. The piston’s movement creates linear motion that can push, pull, or lift loads. When the air pressure stops, a spring or opposing air pressure moves the piston back.
Control happens by regulating air flow through valves. This lets the actuator move to different positions, but the control is less precise than electric actuators. Pneumatic actuators are best suited for simple, end-to-end motions rather than fine positioning.
Pneumatic actuators are popular in industries that need fast, reliable motion with moderate force. Common uses include:
● Valve automation in oil, gas, and water systems
● Packaging and assembly lines
● Material handling and pick-and-place robots
● Food and beverage processing
Their benefits include:
● High speed and quick response times
● Ability to operate in hazardous or explosive environments
● Simple, rugged design with fewer moving parts
● Lower initial cost compared to electric actuators
However, they require a constant supply of compressed air, which can increase operating costs and maintenance needs.
Note: Pneumatic actuators excel in environments requiring fast, simple movements and can handle higher temperatures and pressures than many electric actuators.

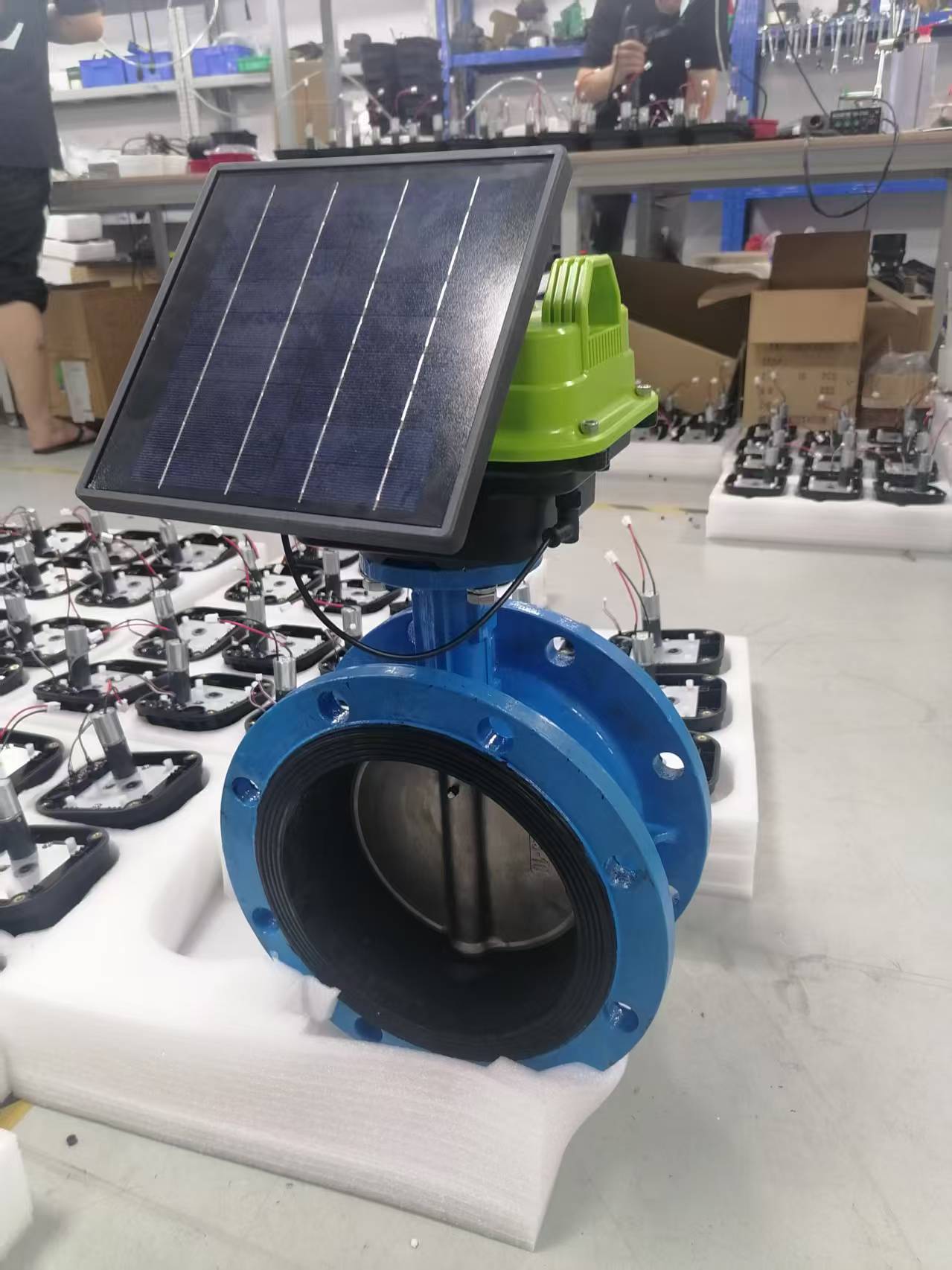

Electric actuators have a more complex design than pneumatic ones. They mainly consist of an electric motor and a mechanism that converts rotary motion into linear motion. Common mechanisms include ball screws, lead screws, rack and pinion, or belts and pulleys. The motor can be a stepper or servo motor, each offering different levels of control and precision.
Key components include:
● Electric Motor: Provides the power to move the actuator.
● Transmission Mechanism: Converts rotary motion to linear motion.
● Sensors and Encoders: Provide feedback for position and speed control.
● Controller: Manages motor operation, often integrated or connected externally.
This complexity allows electric actuators to offer precise control over position, speed, and force. However, it also means they require more careful installation and setup compared to pneumatic actuators.
Electric actuators operate by converting electrical energy into mechanical motion. The motor rotates a screw or gear, which moves a nut or rack linearly. This linear movement pushes or pulls the load.
Control happens through regulating electrical current and voltage supplied to the motor. Feedback from sensors like encoders allows for closed-loop control, enabling the actuator to reach and hold precise positions.
Because electricity is easy to control, electric actuators can perform complex motion profiles, including variable speeds and acceleration patterns. This makes them suitable for applications requiring fine positioning or synchronized multi-axis movements.
Electric actuators are widely used in industries where precision, repeatability, and efficiency are critical. Typical applications include:
● Robotics and automation
● Medical devices
● Semiconductor manufacturing
● Packaging machinery
● Aerospace and defense systems
Benefits of electric actuators include:
● High precision and repeatability for multi-point positioning
● Energy efficiency, often around 80%
● Minimal maintenance due to fewer moving parts and no compressed air system
● Ability to integrate easily with digital control systems and collect operational data
● Quiet operation compared to pneumatic actuators
While electric actuators have a higher initial cost, their long-term savings in energy and maintenance often make them more cost-effective over time.
Pneumatic actuators generate force by using compressed air to push against a piston inside a cylinder. The force depends mainly on two factors: the air pressure and the piston’s surface area. Higher air pressure or a larger piston area means more force. For example, if the piston area is 10 square inches and the air pressure is 80 psi, the actuator can produce 800 pounds of force.
Some pneumatic actuators use multiple pistons to increase force. More pistons mean more force but also require more compressed air. The force can vary if air pressure fluctuates, making it less consistent than electric actuators.
Electric actuators create force by converting motor torque into linear motion through mechanisms like ball screws or rack and pinion gears. The motor’s torque and the mechanical advantage of the screw or gears determine the force output.
For instance, a motor producing 10 Nm of torque with a ball screw having a certain lead can deliver a specific linear force. Changing the screw’s lead or gear ratio can increase force at the cost of speed, or vice versa.
Electric actuators provide more consistent force because electric current and voltage are easier to control precisely than air pressure.
Pneumatic actuators generally offer higher speeds and faster response times. They can quickly push or pull loads because compressed air moves the piston almost instantly. Typical cycle times for pneumatic actuators range from 0.5 to 1 second, making them suitable for fast, repetitive tasks.
Electric actuators usually have slower speeds due to the mechanical conversion of rotary to linear motion and the motor’s rotational speed limits. However, they allow precise speed control and smooth acceleration or deceleration, which is essential for delicate or complex motion profiles.
Speed in electric actuators can be adjusted by changing motor speed or gear ratios, but increasing speed often reduces force and vice versa.
Aspect | Pneumatic Actuators | Electric Actuators |
Force Generation | Depends on air pressure and piston area | Depends on motor torque and screw pitch |
Force Consistency | Variable due to air pressure changes | Consistent via precise electrical control |
Speed | High speed, fast response | Moderate speed, precise control |
Speed Adjustment | Limited, mainly by air flow regulation | Flexible, adjustable via motor control |
Note: Pneumatic actuators excel in applications requiring rapid, powerful strokes, while electric actuators suit tasks needing consistent force and controlled speed.
Precision matters a lot when actuators control machines or processes. It ensures the actuator moves exactly where it should, every time. This is crucial in industries like robotics, medical devices, and semiconductor manufacturing, where even slight errors can cause big problems. Repeatability means the actuator can return to the same position over and over without drifting. Both accuracy and repeatability affect product quality, safety, and efficiency.
Electric actuators shine in precision and repeatability. They use electric motors—stepper or servo—that offer fine control over position and torque. Sensors and encoders provide real-time feedback, allowing the system to correct any deviation immediately. This closed-loop control means electric actuators can hit exact positions consistently.
For example, in a packaging machine, an electric actuator can place items at precise points on a conveyor belt with minimal variation. This level of control also allows complex motion profiles, like smooth acceleration and deceleration, reducing wear and tear.
The holding torque of electric motors stops position drift when the power is off. Plus, electric actuators can store hundreds of target positions, enabling multi-point positioning and synchronized multi-axis movements. This capability is vital in advanced automation systems.
Pneumatic actuators struggle to match electric actuators in precision. Their motion depends on air pressure, which is harder to control accurately due to leaks, pressure fluctuations, and compressibility of air. These factors cause variations in force and position.
Typically, pneumatic actuators are used for simple end-to-end movements, like opening or closing a valve. Fine positioning requires additional sensors and control valves, increasing system complexity and cost. Even then, they rarely achieve the same repeatability as electric actuators.
For instance, a pneumatic actuator might open a valve fully but can't reliably stop it at intermediate positions without extra devices. Also, air leaks or worn seals degrade accuracy over time, requiring frequent maintenance.
Pneumatic actuators usually have a lower initial purchase price. Their simple design and fewer electronic parts make them cheaper upfront. However, they need additional equipment like air compressors, filters, and valves, which add to installation expenses and space requirements.
Electric actuators cost more initially due to complex components like motors, encoders, and controllers. But they don’t require air compressors or extensive peripheral equipment. This often results in simpler installation and less space usage.
Over time, pneumatic systems can become more expensive to operate. They consume large amounts of compressed air, which requires energy to generate. Also, maintaining air compressors and related components adds to long-term costs.
Electric actuators tend to have higher upfront costs but save money on energy and maintenance. Their electrical power consumption is more efficient, and fewer parts need regular upkeep.
Pneumatic actuators operate at about 10% to 25% efficiency. Most energy is lost in compressing air and leaks in the system. The U.S. Department of Energy notes compressed air systems often have an overall efficiency as low as 10 to 15%.
Electric actuators operate around 80% efficiency. They convert electrical energy directly into mechanical motion with minimal losses. This higher efficiency translates into lower energy bills and less environmental impact.
Because pneumatic actuators rely on compressed air, energy losses happen at multiple points: air compression, transmission through pipes, and leakage. Electric actuators avoid these losses by using direct electrical power.
Total cost of ownership (TCO) includes initial purchase, installation, operating costs, maintenance, and downtime expenses. Pneumatic actuators may seem cheaper at first but often incur higher TCO due to energy waste, frequent maintenance, and air system upkeep.
Electric actuators usually have a higher purchase price but lower operating and maintenance costs. They don’t need air compressors or complex air delivery systems, reducing failure points and maintenance labor.
For example, in a packaging line running many cycles daily, electric actuators save significant energy and maintenance costs over years. Pneumatic systems might need more frequent seal replacements and compressor servicing, increasing downtime.
When calculating TCO, consider:
● Initial equipment and installation costs
● Energy consumption over expected life
● Maintenance frequency and costs
● Downtime impact on production
● Replacement parts and labor
Choosing electric actuators often pays off in the long run, especially for continuous or precision applications.
Pneumatic actuators thrive in harsh environments. They handle wide temperature ranges, often from -20°F to 350°F. This makes them ideal for outdoor or industrial settings with extreme heat or cold. Because they use compressed air, they resist explosions and sparks, making them safe in hazardous areas like chemical plants or oil refineries.
Their rugged design tolerates dust, moisture, and vibration better than electric actuators. However, high temperatures can still cause seals to wear faster, possibly slowing response times or causing leaks. Proper maintenance helps keep them reliable in tough conditions.
Electric actuators need more protection from the environment. Their motors, sensors, and electronics are sensitive to dust, water, and extreme temperatures. Typically, they operate best between 40°F and 150°F. Beyond this range, motors may overheat or lubrication may fail, reducing lifespan.
To work in harsh conditions, electric actuators require enclosures with high ingress protection (IP) ratings. These protect against dust and moisture but add cost and size. They also need vibration damping and sometimes cooling systems to maintain performance.
Electric actuators are quieter and cleaner but may struggle in explosive or very dirty environments unless specially designed.
Choosing the right actuator for harsh environments depends on the specific conditions. Pneumatic actuators often win in explosive or very hot settings due to their simplicity and air power. They tolerate dirt and moisture well but need a clean, dry air supply to avoid internal corrosion or damage.
Electric actuators excel where precise control and quiet operation matter, but they need protection. Using IP-rated enclosures, sealing, and proper cooling can extend their use in tough places. For hazardous zones, certifications like ATEX or IECEx ensure safety compliance.
In some cases, hybrid systems combine pneumatic power with electric controls to balance durability and precision.
Pneumatic actuators demand frequent maintenance. They rely on a steady supply of clean, dry compressed air. This means you must maintain not only the actuator but also the entire air system. Components like compressors, valves, filters, lubricators, and tubing need regular checks and servicing. Air leaks are a common problem that reduces efficiency and force output. Worn seals on pistons and rods cause leaks, leading to inconsistent performance and energy waste. Fixing leaks often involves replacing seals or adjusting air pressure. Because these parts wear over time, expect maintenance tasks to be ongoing.
Additionally, air quality affects actuator life. Moisture or contaminants in the air can corrode internal parts, causing premature failure. Using air dryers and filters helps extend service life but adds to maintenance complexity. Pneumatic actuators also need lubrication to keep moving parts running smoothly. Without proper lubrication, friction increases, accelerating wear.
Electric actuators require much less maintenance. Fewer moving parts and the absence of compressed air systems simplify upkeep. Most electric actuators only need occasional lubrication of bearings and gears. Modern electric motors are designed for long life and often considered maintenance-free. If a motor fails, it’s usually more cost-effective to replace it than repair it.
Electric actuators need periodic inspection of electrical connections and control systems to ensure reliable operation. Dust or moisture in the environment can affect sensors and encoders, so protecting these components is important. Encoders may need calibration over time to maintain accuracy.
Since electric actuators don’t rely on air supply, they avoid issues like leaks or air contamination. This reduces downtime and lowers maintenance labor costs. Overall, electric actuators offer more predictable and manageable maintenance schedules.
Both pneumatic and electric actuators have service lives influenced by their design and operating conditions. Pneumatic actuators’ life mainly depends on seal condition and air quality. Seal wear is hard to predict, so regular inspections are essential. Operating outside recommended temperature or pressure ranges shortens life. High temperatures degrade seals faster, causing leaks and performance loss.
Electric actuators’ service life is often rated by L10 bearing life, which estimates the time before 10% of bearings fail. This calculation helps predict motor lifespan more accurately. Keeping operating temperatures low and within specs extends motor and bearing life. Electric actuators are sensitive to heat, dust, and vibration, so proper environmental protection improves reliability.
In harsh environments, pneumatic actuators may last longer due to simpler, rugged designs. However, electric actuators with proper enclosures and cooling can also achieve high reliability.
In summary, pneumatic actuators require more hands-on maintenance and have less predictable service life. Electric actuators offer longer, more reliable operation with minimal upkeep, especially when protected from harsh conditions.
Pneumatic actuators are ideal for rapid, simple motions with lower initial costs, while electric actuators excel in precision and efficiency. Choosing the right actuator depends on specific application needs, such as speed, force, and environmental conditions. Future trends suggest advancements in actuator technology, enhancing both types' capabilities. Shenzhen Power-Tomorrow Actuator Valve Co., Ltd. offers innovative actuator solutions, combining reliability and efficiency to meet diverse industry demands. Their products provide significant value through superior design and performance.
A: An Electric Actuator is a device that converts electrical energy into mechanical motion, commonly used for precise control in various industries such as robotics and automation.
A: Electric Actuators work by using an electric motor to rotate a screw or gear, converting rotary motion into linear motion, allowing for precise control over position and speed.
A: Electric Actuators offer high precision, energy efficiency, and minimal maintenance compared to Pneumatic Actuators, making them ideal for applications requiring complex motion profiles.
A: Electric Actuators provide benefits like high precision, repeatability, energy efficiency, and easy integration with digital control systems, suitable for industries needing precise control.
A: Troubleshooting an Electric Actuator involves checking electrical connections, sensor calibration, and motor operation to ensure reliable performance and address any issues promptly.
