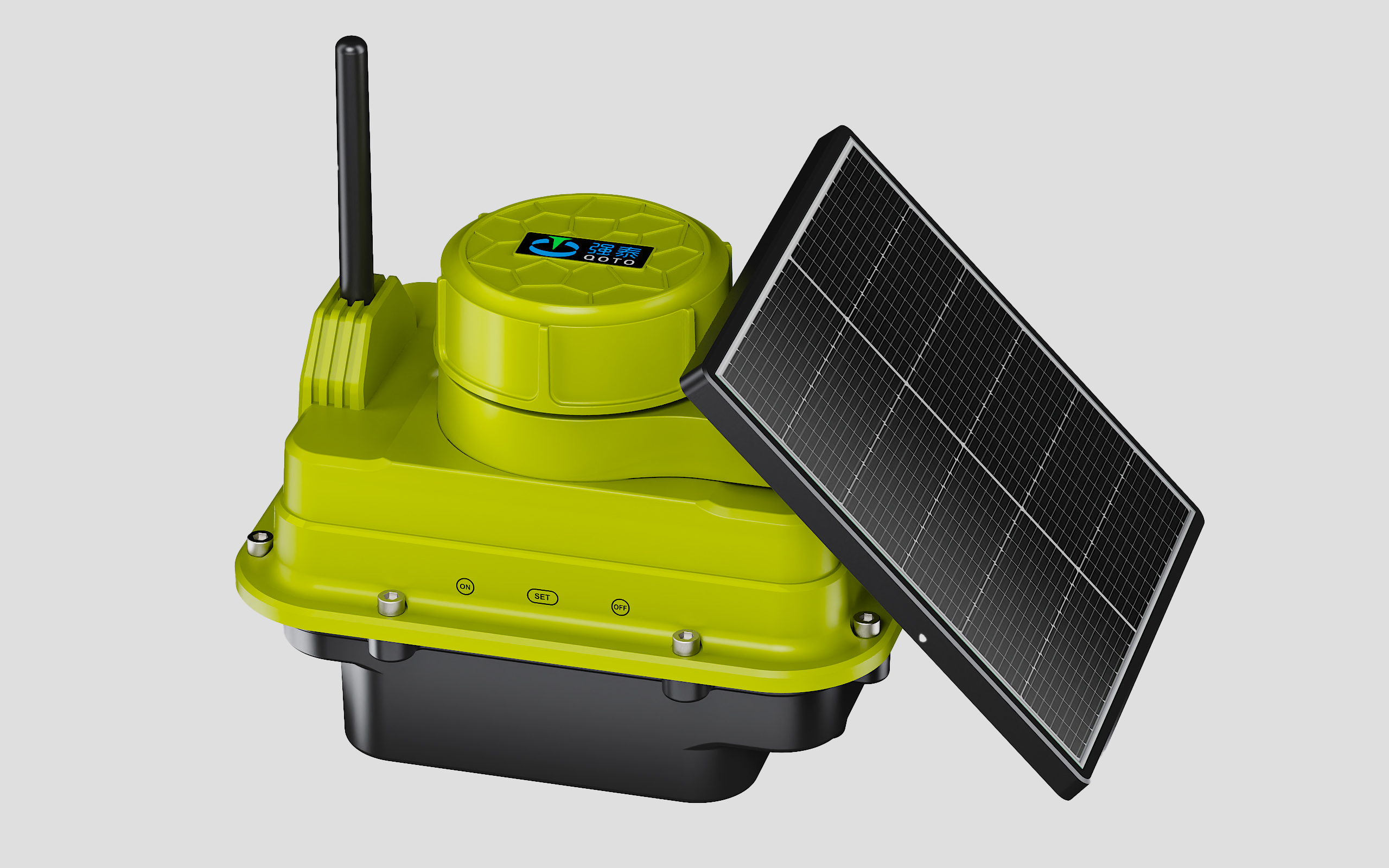

Ever wondered how machines precisely control movements? Electric Actuator are the key. These devices convert electrical energy into mechanical motion, playing a crucial role in industrial automation. In this guide, you'll learn about different types of actuators, their benefits, selection criteria, and maintenance tips for optimal performance.
Electrical actuators convert electrical energy into mechanical motion to control valves or other devices. They use an electric motor that spins a shaft connected to a gear system. This gear system reduces the motor’s speed and increases torque, turning rotary motion into linear or rotary movement as needed. The actuator moves the valve stem or mechanism precisely, allowing it to open, close, or modulate flow.
Inside, a typical actuator contains a motor, gearbox, lead screw or another transmission, and position sensors or limit switches. When power is applied, the motor drives the gears, which move the output shaft. Position sensors provide feedback to control systems, ensuring accurate placement.
This electrical-to-mechanical conversion enables smooth, repeatable motion. It also allows integration with automated control systems for remote or precise valve management.
Electrical actuators come in several types based on their motion and design:
● Linear Actuators: Produce straight-line motion by converting motor rotation into linear movement using a lead screw or ball screw. Ideal for pushing or pulling actions.
● Rotary Actuators: Provide rotational motion, typically used for valves requiring a quarter-turn or continuous rotation.
● Part-Turn Actuators: Designed for valves needing limited rotation, like butterfly or ball valves, usually with 90° movement.
● Multi-Turn Actuators: Offer several full rotations, suitable for valves like globe valves requiring multiple turns.
Each type suits specific valve designs and application needs.
● Electric Motor: Powers the actuator, often DC or AC. DC motors are popular for their ease of control and safety.
● Gearbox: Reduces motor speed, increases torque, and adapts motion type.
● Lead Screw/Ball Screw: Converts rotary motion to linear motion in linear actuators.
● Position Sensors/Limit Switches: Detect actuator position and prevent over-travel, ensuring safe operation.
● Housing: Protects internal parts and provides mounting points.
● Clevis or Mounting Brackets: Attach actuator to valve or mechanism, allowing some pivoting to accommodate movement angles.
Understanding these components helps in selecting the right actuator for your system's requirements.
Electrical actuators have become a cornerstone in industrial automation due to their unique advantages. Understanding these benefits helps businesses optimize their processes and improve overall system performance.
Electrical actuators deliver precise and repeatable motion control, which enhances process accuracy. This precision means valves and mechanisms open or close exactly as required, reducing waste and improving product quality. They respond quickly to control signals, enabling faster adjustments to changing conditions. This responsiveness helps maintain optimal flow rates and pressure levels, boosting productivity.
Moreover, electrical actuators integrate seamlessly with automated control systems. This integration allows remote operation and real-time monitoring, reducing the need for manual intervention. As a result, plants can operate more efficiently and with fewer errors.
Safety is critical in industrial environments. Electrical actuators often include built-in safety mechanisms such as overload protection, position feedback, and fail-safe settings. These features prevent mechanical damage and hazardous situations by stopping or reversing motion if abnormal conditions occur.
For example, overload protection can detect excessive torque and halt actuator movement to avoid damage. Position sensors ensure the actuator does not move beyond safe limits. These safety features protect both equipment and personnel, reducing accident risks and compliance issues.
Electrical actuators also support integration with broader safety systems, such as emergency shutdown controls. This connectivity ensures rapid response during emergencies, enhancing plant safety.
Downtime costs money. Electrical actuators help minimize downtime by offering reliable, low-maintenance operation. Unlike pneumatic or hydraulic systems, they don't rely on compressed air or fluids, which can leak or require frequent servicing.
Their robust design and fewer moving parts mean fewer breakdowns. When maintenance is needed, it’s often straightforward due to modular components and clear diagnostics from position sensors or controllers.
Additionally, electrical actuators allow remote diagnostics and control, enabling technicians to identify and address issues quickly, sometimes without visiting the site. This capability shortens repair times and keeps production running smoothly.
Tip: Choose electrical actuators with built-in position feedback and overload protection to enhance safety and reduce unexpected downtime in your automated systems.
Choosing the right electrical actuator starts with understanding your system’s needs. First, consider the load requirements. How much force or torque must the actuator deliver? This depends on the valve size, pressure, and flow conditions. Always include a safety margin—around 20-50% above the calculated torque—to account for unexpected resistance or wear.
Next, evaluate the operating environment. Will the actuator face extreme temperatures, moisture, dust, or corrosive substances? Select an actuator with an appropriate IP rating and durable materials to ensure long-term reliability.
Also, think about power availability. Actuators come in various voltage ratings, commonly 12V, 24V, or 48V DC. Choose one matching your power source and control system to avoid compatibility issues.
Finally, consider control precision and speed. Some applications need rapid valve movement; others require smooth, gradual changes. Make sure the actuator supports the necessary speed and positioning accuracy.
Not all actuators fit all valves. Match the actuator type to your valve design:
● Quarter-turn valves (butterfly, ball, plug) typically use part-turn actuators with about 90° rotation.
● Multi-turn valves (globe, gate) need actuators capable of several full rotations.
● Linear valves require linear actuators that push or pull the valve stem.
Check the actuator’s mounting options and shaft connections to ensure a secure fit. Incorrect compatibility can cause poor valve control or damage.
Torque applies to rotary actuators, while thrust relates to linear actuators:
● Calculate the required torque by considering valve size, fluid pressure, and friction.
● For linear actuators, determine the thrust force needed to move the valve stem.
Always select an actuator that can deliver slightly more torque or thrust than your calculations to handle peak loads without strain.
When choosing an actuator system, understanding the differences between electric, pneumatic, and hydraulic actuators is crucial. Each system has unique features, strengths, and limitations that suit different applications.
● Electric Actuators use electric motors to convert electrical energy into mechanical motion. They offer high precision, programmability, and easy integration with control systems. Electric actuators work well for applications needing accurate positioning and repeatable motion.
● Pneumatic Actuators operate using compressed air to drive piston or diaphragm movements. They are simple, fast, and cost-effective but struggle with precise positioning. Pneumatics are common in systems where speed and simplicity outweigh exact control.
● Hydraulic Actuators use pressurized fluid to generate high force and long strokes. They excel in heavy-duty tasks requiring large loads. However, hydraulic systems are complex, require maintenance, and risk fluid leaks.
Actuator Type | Pros | Cons |
Electric | Precise control, programmable, low maintenance, clean operation | Limited shock load capacity, can be slower at high force |
Pneumatic | Fast response, simple design, cost-effective | Poor position accuracy, requires compressed air, moderate load capacity |
Hydraulic | Very high force, long stroke, explosion-proof options | Complex, high maintenance, fluid leak risks, costly |
Electric actuators provide excellent control and efficiency but may not handle shock loads well. Pneumatic actuators are ideal for quick, simple movements but lack precision. Hydraulic actuators handle heavy loads and harsh environments but need more upkeep and infrastructure.
● Electric Actuators: Ideal for automated industrial processes, robotics, HVAC systems, and anywhere precise valve or mechanism control is needed. Their programmability suits complex motion profiles and remote operation.
● Pneumatic Actuators: Best for manufacturing lines requiring fast valve actuation, packaging machinery, or simple on/off control where exact positioning is less critical.
● Hydraulic Actuators: Used in heavy machinery, construction equipment, aerospace, and environments needing high force and durability, such as mining or shipbuilding.
Installing electrical actuators correctly is key to ensuring reliable operation and long service life. Begin by securely mounting the actuator to the valve or mechanism using the provided brackets or clevis mounts. Make sure the actuator shaft aligns precisely with the valve stem to avoid undue stress or misalignment. Misalignment can cause premature wear or failure.
Follow the manufacturer’s wiring instructions carefully. Use the recommended wire gauge and connectors to handle the actuator's voltage and current. Properly route cables to prevent chafing or damage from moving parts. Ground the actuator according to safety standards to avoid electrical hazards.
Before powering on, double-check all mechanical connections and electrical wiring. Test the actuator’s range of motion manually or with low power to confirm smooth operation. Ensure limit switches or position sensors are correctly set to prevent over-travel.
Regular maintenance keeps actuators working smoothly and prevents unexpected breakdowns. Schedule inspections to check for wear, corrosion, or damage on mechanical parts like gears, shafts, and mounts. Clean the actuator housing to remove dust, dirt, or debris that could interfere with moving components.
Lubricate gears, bearings, and lead screws periodically using manufacturer-recommended lubricants. Avoid over-lubrication, which can attract contaminants. Inspect electrical connections for corrosion or looseness and tighten as needed.
Monitor actuator performance, listening for unusual noises or vibrations that might indicate internal issues. Check position feedback signals to ensure sensors function properly.
Keep maintenance records, noting inspections, repairs, and replacements. This documentation helps identify recurring problems and plan future upkeep.
Taking proactive steps can extend actuator life and reduce downtime. Operate actuators within their specified load, speed, and duty cycle limits to avoid overheating or mechanical stress. Avoid side loads or off-axis forces that can damage the actuator shaft or housing.
Install protective covers or enclosures in harsh environments to shield actuators from moisture, dust, and chemicals. Choose actuators with suitable IP ratings for your conditions.
Implement remote monitoring or diagnostics if available. Early detection of faults through position feedback or motor current analysis can prevent severe failures.
Replace worn components promptly rather than waiting for complete failure. For example, worn brushes in brushed motors or degraded seals should be serviced as soon as detected.
Electrical actuators often come equipped with important safety features to protect both the equipment and operators. Overload protection is one key feature. It stops the motor if it senses too much current, which can happen if the actuator is jammed or overloaded. This prevents damage to gears and the motor.
Position sensors and limit switches also enhance safety. They monitor the actuator’s position and stop movement at preset limits, avoiding over-travel that could harm the valve or connected machinery. Some actuators include fail-safe modes that automatically move valves to a safe position during power loss or emergency.
Integration with safety control systems is common. Actuators can connect to emergency shutdown protocols, ensuring rapid response to hazardous conditions. These features reduce accident risks and improve compliance with industrial safety standards.
Load and speed are critical parameters when selecting an electrical actuator. The load refers to the force or torque the actuator must deliver to move the valve or mechanism. Speed is how fast the actuator completes its movement.
Voltage directly affects speed and torque. Higher voltages typically boost speed and torque but may require more robust power supplies. Common voltages include 12V, 24V, and 48V DC, each balancing power and efficiency differently.
The type of leadscrew inside the actuator influences load capacity and speed. ACME leadscrews handle heavier loads but run slower and generate more heat. Ball screws offer higher speed and efficiency but might cost more and take up extra space.
Motor specifications also matter. High RPM motors provide faster speeds but lower torque, while high torque motors deliver stronger force at slower speeds. Selecting the right motor depends on whether speed or force is more important for your application.
Electrical actuators often operate in harsh environments. Dust, moisture, chemicals, and temperature extremes can damage unprotected actuators, leading to failures and downtime.
An IP (Ingress Protection) rating indicates how well an actuator’s enclosure resists solids and liquids. The first digit rates protection from dust and particles, ranging from 0 (no protection) to 6 (dust-tight). The second digit rates water resistance, from 0 (no protection) up to 8 (protection against immersion).
For example:
● IP42 suits indoor use with minimal dust and no water exposure.
● IP54 protects against limited dust ingress and water splashes, ideal for warehouses or hospitals.
● IP66 withstands heavy dust and powerful water jets, suitable for outdoor or industrial sites.
Choosing an actuator with the right IP rating ensures durability and reliable operation in your environment.
Electrical actuators play a vital role in industrial automation. They control valves, dampers, and other mechanical devices to regulate the flow of liquids, gases, and materials. Industries such as petrochemical, power generation, water treatment, and manufacturing rely on these actuators for precise control and efficient operation.
For example, in chemical plants, electrical actuators adjust valve positions to maintain safe pressure and flow rates. In power plants, they help regulate steam flow and cooling systems. Their ability to integrate with control systems enables remote operation and real-time monitoring, enhancing operational efficiency and safety.
In homes and offices, electrical actuators automate everyday tasks, improving comfort and convenience. They operate window blinds, adjustable furniture, ventilation systems, and security devices.
For instance, actuators can open or close blinds based on sunlight levels or time of day, contributing to energy savings. Adjustable desks and chairs use actuators to provide ergonomic support. Ventilation dampers controlled by actuators help maintain air quality and temperature efficiently.
These actuators are designed to be quiet, compact, and energy-efficient, making them ideal for living and working environments.
Electrical actuators are essential in robotics for precise movement and control. They act as artificial muscles, driving joints and grippers with accuracy and repeatability. Robots in manufacturing, medical devices, and service industries depend on actuators for tasks requiring delicate or complex motions.
In automotive applications, actuators control components like throttle valves, HVAC vents, seat adjustments, and convertible tops. Advanced vehicles use actuators for adaptive cruise control, automatic braking, and other driver-assistance features.
Marine and aerospace industries also utilize electrical actuators to manage control surfaces, hatches, and doors, benefiting from their reliability and precise control.
Electrical actuators are vital for precise and efficient control in various applications, from industrial automation to home systems. Selecting the right actuator requires understanding load requirements, environmental conditions, and control needs. Proper installation and maintenance ensure long-term reliability and performance. Future trends in actuator technology promise enhanced integration and smarter control systems. Shenzhen Power-Tomorrow Actuator Valve Co., Ltd. offers innovative solutions that maximize efficiency and safety, providing exceptional value for diverse applications.
A: An Electric Actuator converts electrical energy into mechanical motion to control valves or devices, using an electric motor and gear system for precise movement.
A: Electric Actuators deliver precise motion control, enhancing accuracy and reducing waste, while integrating seamlessly with automated systems for remote operation.
A: Electric Actuators offer precise control, low maintenance, and easy integration with control systems, ideal for applications requiring accurate positioning and repeatable motion.
