A motorized valve plays a central role in automated fluid control by combining mechanical valve design with electric actuation. Unlike manual valves, it enables precise, repeatable, and remote-controlled regulation of liquids or gases, making it indispensable in industrial automation, building services, and infrastructure systems. As automation continues to expand across sectors such as HVAC systems, water management, and process control, understanding how a motorized valve works and how to choose the right one becomes essential for ensuring system reliability, safety, and efficiency. This article focuses on practical selection guidance, functional differences, and real-world considerations rather than abstract definitions.
A motorized valve is a valve operated by an Electric actuator that automatically opens, closes, or modulates flow in response to a control signal. The actuator converts electrical energy into mechanical motion, driving the valve stem or disc to a specific position. Depending on the design, the valve may operate in on/off mode or provide proportional control for precise flow regulation.
The working principle typically involves a motor, gear train, limit switches, and a valve body. When a voltage signal such as 24v is applied, the motor turns, moving the internal valve element. Once the preset position is reached, limit switches stop the motor to prevent overtravel. Some designs include spring-return mechanisms that force the valve into a Normally closed or normally open position during power failure, improving system safety.
Because a motorized valve does not rely on air pressure like pneumatic valves, it is well suited for environments where compressed air is unavailable or undesirable. This self-contained operation makes it popular for water control, automated pipelines, and distributed systems requiring reliable electrical actuation.

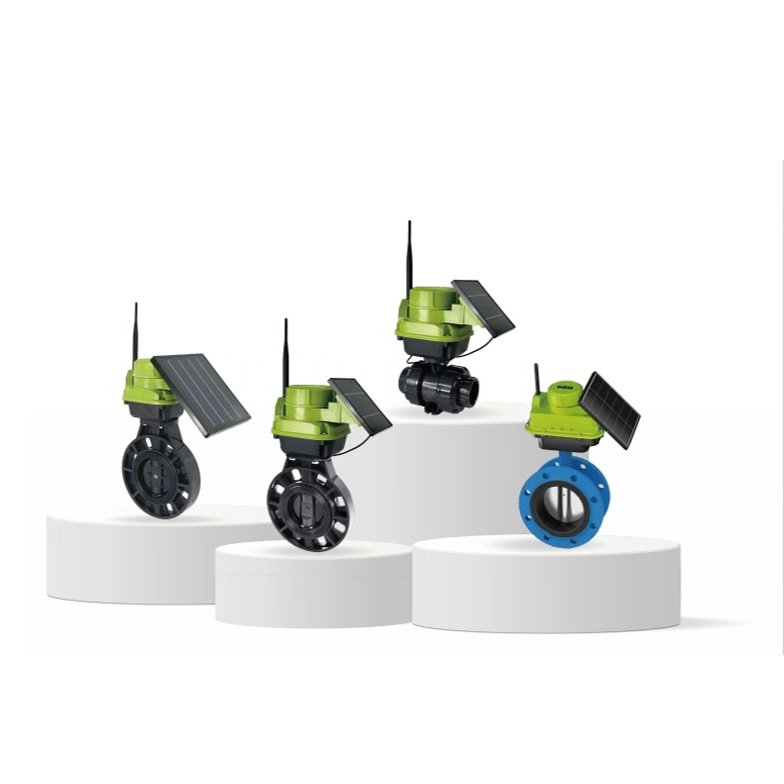

There are several common configurations of motorized valve, each designed to meet different control and flow requirements. Understanding these differences is essential when selecting a suitable valve.

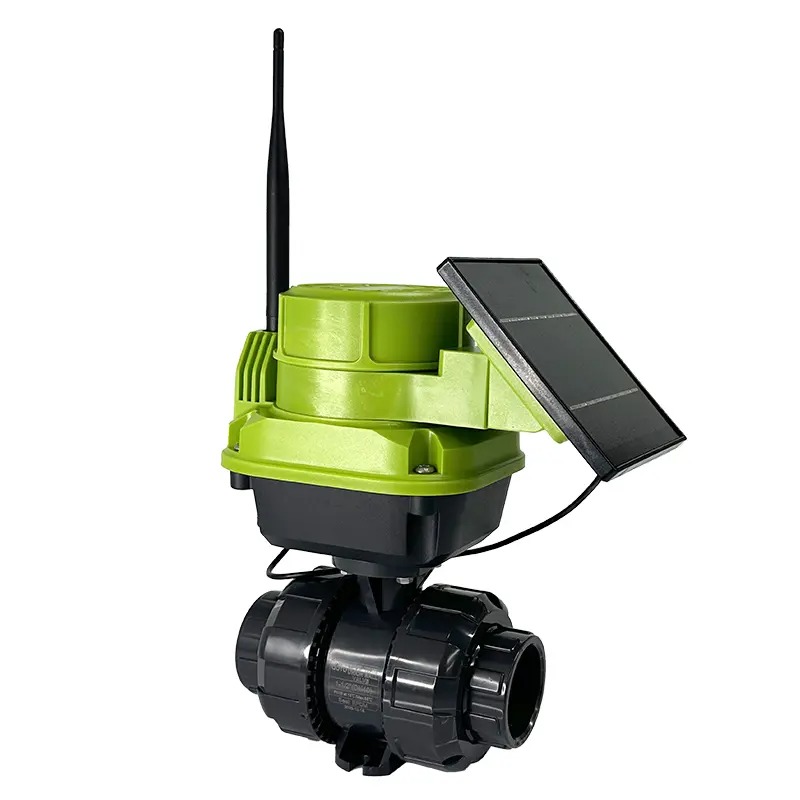

Ball valves are widely used due to their tight shutoff and simple structure. A motorized ball valve rotates a spherical ball with a bore to allow or block flow. They are common in for irrigation systems and general water control applications. Butterfly valves, identified by their rotating disc, are lighter and more compact, making butterfly-type motorized valves ideal for large-diameter pipelines.
A 3-way motorized valve is designed for flow diversion or mixing, commonly used in HVAC systems to control heating or cooling loops. These valves allow more complex flow paths compared to standard two-way valves and are critical for energy-efficient thermal management.
Control behavior also differs. On/off valves fully open or close, while modulating valves adjust flow proportionally. Selecting the correct type depends on whether the system requires simple isolation or precise flow adjustment.
The versatility of a motorized valve allows it to be deployed across many industries where automation and reliability are priorities. In building automation, HVAC systems rely on motorized valves to regulate chilled water, hot water, and steam, ensuring stable indoor temperatures and efficient energy usage.
In agriculture, motorized valves for irrigation enable scheduled and remote-controlled water distribution, reducing waste and labor costs. Their ability to integrate with sensors and controllers supports smart irrigation strategies based on soil moisture and weather data.
Industrial process control also depends heavily on motorized valves for managing chemicals, water, and gases. Valves made from Stainless steel are particularly valued in corrosive or hygienic environments, such as food processing and water treatment. Municipal infrastructure uses motorized valves in pumping stations and distribution networks to improve responsiveness and reduce manual intervention.
Across all these applications, the common benefit is consistent, automated flow control that enhances operational efficiency and system safety.
Selecting the right motorized valve requires a structured evaluation of system requirements rather than focusing on a single parameter. The first consideration is the type of medium being controlled. Clean water, corrosive chemicals, or high-temperature fluids each demand different valve materials and sealing technologies.
Operating pressure and temperature ranges directly influence valve body design and actuator torque requirements. Undersizing the actuator can lead to incomplete closure, while oversizing increases cost and energy consumption. Control voltage, such as 24v, must match the available power supply and control system.
Fail-safe behavior is another critical factor. In applications where safety is paramount, a Normally closed motorized valve ensures flow stops during power loss. Response time, duty cycle, and expected service life should also be assessed, especially in systems with frequent actuation.
Finally, compatibility with existing control systems, including building management or industrial PLCs, determines how easily the valve can be integrated and maintained over time.
Material selection significantly impacts the durability and suitability of a motorized valve. Brass valves are cost-effective for general water control, while Stainless steel valves offer superior corrosion resistance and strength for demanding environments. Plastic valves are lightweight and resistant to certain chemicals but have limited temperature tolerance.
Power options influence both performance and application scope. Low-voltage Electric actuators such as 24v models are common in HVAC systems and building automation due to their safety and compatibility with control panels. Higher voltage actuators are often used in industrial settings where longer cable runs are required.
The table below summarizes key comparison points:
| Selection Aspect | Common Options | Typical Use Case |
|---|---|---|
| Valve Type | Ball, butterfly, 3-way | Isolation, mixing, diversion |
| Material | Brass, Stainless steel, Plastic | Water, corrosive fluids |
| Power Supply | 24v, 110–230V Electric | Building vs. industrial systems |
| Control Mode | On/Off, Modulating | Simple control vs. precision |
Understanding these trade-offs helps ensure the selected motorized valve aligns with both technical and operational requirements.
Proper installation is critical to the long-term performance of a motorized valve. Valves must be installed according to flow direction markings, and adequate space should be provided for actuator removal or servicing. Incorrect orientation can lead to uneven wear or sealing failure.
Electrical connections should follow local codes and ensure stable voltage supply to prevent actuator damage. In HVAC systems, integration with controllers and sensors must be tested thoroughly to confirm accurate response to control signals.
Maintenance requirements vary by valve type and application. While many motorized valves are designed for minimal maintenance, periodic inspection of seals, wiring, and actuator movement helps prevent unexpected failures. In water systems, sediment buildup can affect performance, making filtration and regular checks important.
Considering these factors during selection reduces downtime and extends the operational life of the motorized valve.
The primary advantage of a motorized valve is automation. Remote operation, consistent performance, and easy integration with control systems significantly improve efficiency compared to manual valves. Energy savings in HVAC systems and water conservation for irrigation are tangible benefits.
However, limitations also exist. Motorized valves depend on electrical power, making them vulnerable during outages unless fail-safe designs are used. Initial costs are higher than manual valves, and improper selection can lead to overengineering or premature wear.
Balancing these advantages and limitations requires a clear understanding of system priorities, operating conditions, and long-term maintenance expectations.
A motorized valve is a cornerstone component in modern automated fluid control systems, offering precision, reliability, and operational efficiency. Choosing a suitable one involves more than identifying a valve type; it requires careful consideration of application demands, materials, power supply, control behavior, and installation conditions. By aligning these factors with system objectives, users can achieve safe, efficient, and durable flow control solutions that support long-term automation goals.
1.What is the main difference between a motorized valve and a solenoid valve?
A motorized valve uses a motor and gears for controlled movement, making it suitable for larger sizes and longer duty cycles, while solenoid valves rely on electromagnetic force and are typically limited to smaller applications.
2.Is a Normally closed motorized valve better for safety?
In many cases, yes. A Normally closed design ensures flow stops automatically during power loss, which is critical in water and heating systems.
3.Can a motorized valve be used for both on/off and modulating control?
Yes, depending on the actuator and control signal, a motorized valve can provide simple on/off operation or precise modulating control.
4.Why is 24v commonly used in HVAC systems?
Low-voltage 24v control is safer, easier to integrate with building automation systems, and widely standardized in HVAC applications.
5.Is Stainless steel always the best material choice?
Not always. Stainless steel offers excellent durability and corrosion resistance, but brass or plastic may be more cost-effective for clean water or low-demand applications.
